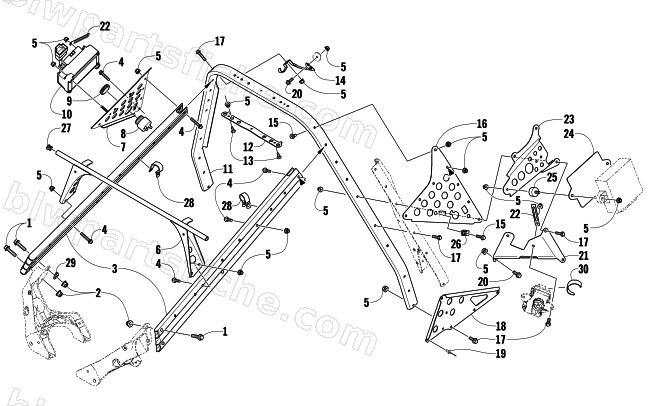

STEERING SUPPORT ASSEMBLY
2008 F8 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 2 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 3 | 0607-814 | FRAME,UPR-FRT INNER-MACH | 1 | $38.95 | |
| 4 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 6 | 3706-346 | BRKT,HEADLIGHT SUPPORT-WELD'T | 1 | $167.95 | |
| 7 | 1707-100 | GUSSET,SUPPORT W/ STUDS-RH | 1 | $26.95 | |
| 8 | 0630-010 | ALARM,REVERSE | 1 | $112.95 | |
| 9 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 10 | 0630-246 | MOD,CONTROL-DC REG/REV-08 F/T 2-STRK | 1 | $465.95 | |
| 11 | 0605-949 | SUPPORT,STEERING-MACH | 1 | $120.95 | |
| 12 | 5606-137 | PLATE,NUT-STEERING SUPPORT-2 STROKE | 1 | $34.95 | |
| 13 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 14 | 4606-687 | BRKT,SUPPORT-RECOIL CUP | 1 | $54.95 | |
| 15 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 16 | 0607-809 | GUSSET,SUPPORT-STEERING SUPPORT/SPAR-LH | 1 | $54.95 | |
| 17 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 18 | 3606-744 | BRKT, OUTER FOOTREST-RH | 1 | $22.01 | |
| 18 | 3606-745 | BRKT, OUTER FOOTREST-LH | 1 | $22.01 | |
| 19 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 20 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 21 | 4606-938 | BRKT,SUPPORT-CLUTCH GUARD-2 STROKE | 1 | $20.95 | |
| 22 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 23 | 4606-940 | BRKT,ECU MOUNT | 1 | $24.95 | |
| 24 | 4606-942 | COVER,ECU-500/600 | 1 | $13.73 | |
| 25 | 0608-567 | MOUNT,RUBBER-ECU | 1 | $13.95 | |
| 26 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 27 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 28 | 1623-722 | CLAMP,CABLE-7/8 INSUL-1/4" MTG | 1 | $1.92 | |
| 29 | 2612-125 | TAB,MTG-EXHAUST SPRING | 1 | $2.61 | |
| 30 | 5606-208 | CLIP,SERVO MOTOR | 1 | $29.95 |
