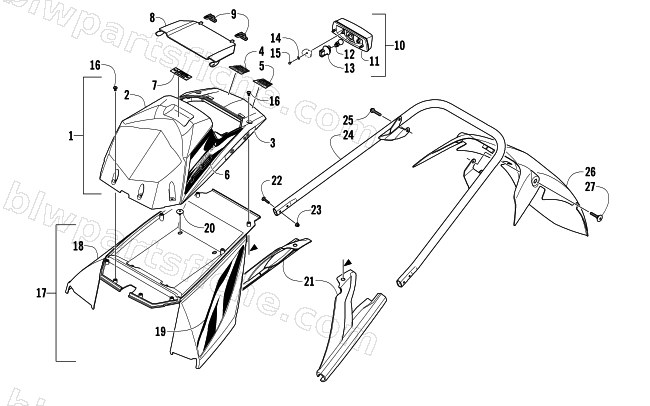

2008 Arctic Cat F8 EFI SNO PRO — REAR BUMPER, STORAGE BOX, AND TAILLIGHT ASSEMBLY
2008 F8 EFI SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4706-055 | BAG,TOOL KIT-ASSY(08 PROD) | 1 | $30.95 | |
| 1 | 2718-201 | BOX,STORAGE-REAR-ORN W/DECALS | 1 | $227.95 | |
| 1 | 2718-200 | BOX,STORAGE-REAR-INJ GREY W/DECALS | 1 | $214.95 | |
| 1 | 2718-199 | BOX,STORAGE-REAR-GRN W/DECALS | 1 | $223.95 | |
| 2 | 2718-396 | BOX,STORAGE-REAR-ORN W/O DECALS | 1 | $129.95 | |
| 2 | 2718-395 | BOX,STORAGE-REAR-INJ GREY W/O DECALS | 1 | $125.95 | |
| 2 | 2718-394 | BOX,STORAGE-REAR-GRN W/O DECALS | 1 | $129.95 | |
| 3 | 8611-182 | DECAL,REFLECTOR-RED-RH | 1 | $26.95 | |
| 3 | 8611-183 | DECAL,REFLECTOR-RED-LH | 1 | $26.95 | |
| 4 | 7611-432 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $15.11 | |
| 5 | 7611-433 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $15.11 | |
| 6 | 8611-072 | DECAL,REAR FENDER-ORN RH "AC F8" | 1 | $56.95 | |
| 6 | 8611-073 | DECAL,REAR FENDER-ORN LH "AC F8" | 1 | $54.95 | |
| 6 | 8611-046 | DECAL,REAR FENDER-BLK RH "AC F8" | 1 | $52.95 | |
| 6 | 8611-047 | DECAL,REAR FENDER-BLK LH "AC F8" | 1 | $52.95 | |
| 6 | 8611-020 | DECAL,REAR FENDER-GRN RH "AC F8" | 1 | $52.95 | |
| 6 | 8611-021 | DECAL,REAR FENDER-GRN LH "AC F8" | 1 | $52.95 | |
| 7 | 7611-902 | DECAL,STORAGE BOX-SEAT ADJUSTMENT | 1 | $73.95 | |
| 8 | 4606-734 | LID,STORAGE BOX-MOLD ORN | 1 | $24.95 | |
| 8 | 5606-079 | LID,STORAGE BOX-MOLD INJECTION GREY | 1 | $24.95 | |
| 8 | 4606-735 | LID,STORAGE BOX-MOLD GRN | 1 | $24.95 | |
| 9 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 10 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 11 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 12 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 13 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 14 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 15 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 16 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 17 | 2718-186 | FENDER,REAR TUNNEL (ROUTED)-BLK W/DECAL | 1 | $219.95 | |
| 17 | 2718-185 | FENDER,REAR TUNNEL (ROUTED)-BLK W/DECAL | 1 | $225.95 | |
| 17 | 2718-184 | FENDER,REAR TUNNEL (ROUTED)-BLK W/DECAL | 1 | $205.95 | |
| 18 | 4706-162 | FENDER,REAR-ROUTED BLK | 1 | $200.95 | |
| 19 | 8611-076 | DECAL,REAR FENDER-LWR ORN RH | 1 | $54.95 | |
| 19 | 8611-077 | DECAL,REAR FENDER-LWR ORN LH | 1 | $54.95 | |
| 19 | 8611-050 | DECAL,REAR FENDER-LWR BLK RH | 1 | $44.95 | |
| 19 | 8611-051 | DECAL,REAR FENDER-LWR BLK LH | 1 | $41.95 | |
| 19 | 8611-024 | DECAL,REAR FENDER-LWR GRN RH | 1 | $56.95 | |
| 19 | 8611-025 | DECAL,REAR FENDER-LWR GRN LH | 1 | $52.95 | |
| 20 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 21 | 4606-728 | PANEL,FILLER-SNOW FLAP-RH | 1 | $32.95 | |
| 21 | 4606-729 | PANEL,FILLER-SNOW FLAP-LH | 1 | $32.95 | |
| 22 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 1707-103 | BUMPER,REAR-128" WELD'T | 1 | $128.95 | |
| 25 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 26 | 3706-920 | FLAP,SNOW-ROUTED | 1 | $200.95 | |
| 27 | 1623-532 | SCREW,SELF TAPPING-M8X45 TRILOBE Z&Y | 1 | $7.95 |
