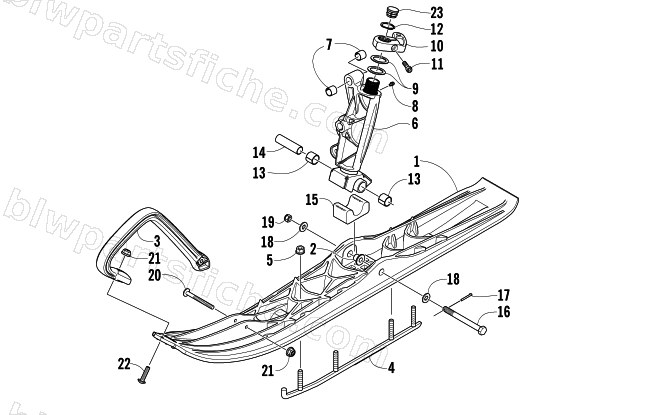

2008 Arctic Cat F8 EFI SNO PRO LIMITED EDITION — SKI AND SPINDLE ASSEMBLY
2008 F8 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-599 | R/B 3703-940 | 1 | $228.95 | |
| 2 | 2603-397 | INSERT,SKI | 1 | $15.11 | |
| 3 | 2603-598 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 4 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 5 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 6 | 2703-252 | SPINDLE,RH-FABR (BLK) | 1 | $318.95 | |
| 6 | 2703-253 | SPINDLE,LH-FABR (BLK) | 1 | $320.95 | |
| 7 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 8 | 1623-654 | FITING,GREASE-1/4-28 STR-THRD FORM | 1 | $1.64 | |
| 9 | 2603-382 | WASHER,THRUST-SPINDLE WELD'T-.030 | 1 | $2.75 | |
| 10 | 4706-272 | ARM,SPINDLE-RH-BLK | 1 | $58.95 | |
| 10 | 4706-273 | ARM,SPINDLE-LH-BLK | 1 | $58.95 | |
| 11 | 0623-872 | SCREW,CAP-HSH-M8X1.25X30 GR 12.9 BLK&Z | 1 | $2.69 | |
| 12 | 0623-796 | SNAP RING,EXTL-BOWED-1 1/8 DIA | 1 | $1.23 | |
| 13 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 14 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 15 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 16 | 0623-776 | SCREW, CAP-HH 7/16-20 X 5.50 W/HOLE | 1 | $14.95 | |
| 17 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 18 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 19 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 20 | 1623-688 | SCREW,MACH-TSTRH 1/4-20 X 2.00 GR5 Z&Y | 1 | $4.26 | |
| 21 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 22 | 1623-689 | SCREW,MACH-TSTRH 1/4-20 X 1.00 GR5 Z&Y | 1 | $8.21 | |
| 23 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 |
