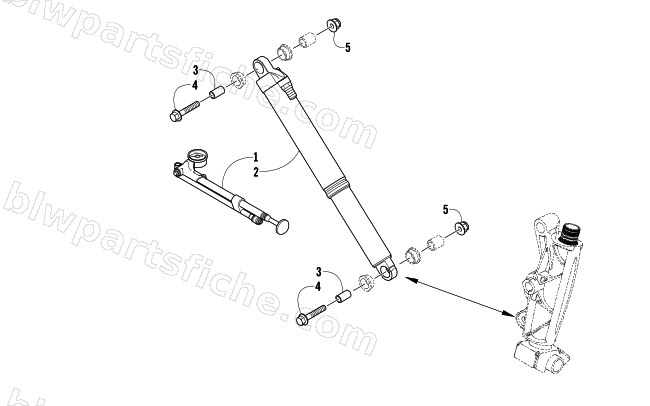

2008 Arctic Cat F8 EFI SNO PRO LIMITED EDITION — FRONT SHOCK ABSORBER ASSEMBLY
2008 F8 EFI SNO PRO LIMITED EDITION
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
2603-614 |
PUMP,FOX HP W/BLEED-150 PSI (FLOAT2) |
1 |
$69.95 |
|
| 2 |
2703-116 |
SHOCK,SKI-FLOAT - 17.50" |
1 |
$909.95 |
|
| 3 |
3604-109 |
SLEEVE,SHOCK EYELET-10mm ID |
1 |
$4.40 |
|
| 4 |
8408-055 |
SCREW,CAP-HFH M10X1.25X55 CL8.8 Z&Y |
1 |
$3.16 |
|
| 5 |
8427-002 |
NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y |
1 |
$0.95 |
|
