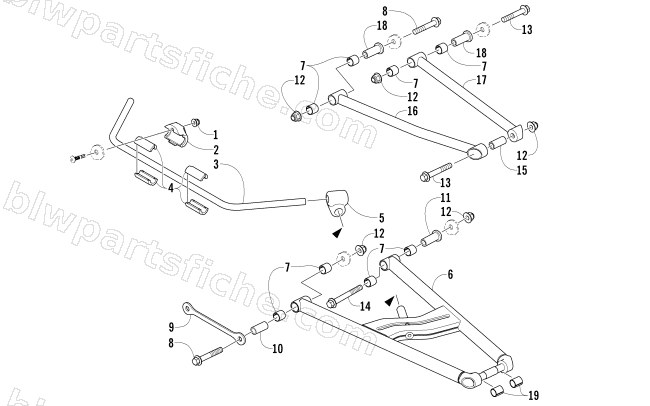

A-ARM AND SWAY BAR ASSEMBLY
2008 F6 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 2 | 2603-818 | BRKT,MTG-SWAY BAR (Z&Y STEEL) | 1 | $30.95 | |
| 3 | 2703-323 | BAR,SWAY-FORMED-13.5 PTD BLK | 1 | $109.95 | |
| 4 | 2603-712 | SLEEVE,SWAY BAR - 13.5 MM | 1 | $6.06 | |
| 5 | 2603-710 | LINK,SWAY BAR-13.5 MM | 1 | $26.95 | |
| 6 | 2703-464 | A-ARM,LWR-FABR(BLK) | 1 | $188.95 | |
| 7 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 8 | 8408-070 | SCREW,CAP-HFH M10X1.25X70 CL8.8 Z&Y | 1 | $2.06 | |
| 9 | 4606-402 | BRACE,A-ARM-LOWER | 1 | $8.21 | |
| 10 | 2603-544 | AXLE, A-ARM-LWR-FRONT | 1 | $2.88 | |
| 11 | 2603-543 | AXLE, A-ARM-LWR-REAR | 1 | $3.99 | |
| 12 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 13 | 8408-065 | SCREW,CAP-HFH M10X1.25X65 CL8.8 Z&Y | 1 | $3.16 | |
| 14 | 8408-090 | SCREW,CAP-HFH M10X1.25X90 CL8.8 Z&Y | 1 | $3.85 | |
| 15 | 2603-643 | AXLE,SPINDLE UPR A-ARM-OUTER | 1 | $3.30 | |
| 16 | 2703-262 | ARM,UPPER FRT-FABR (BLK) | 1 | $85.95 | |
| 17 | 2703-248 | ARM,UPPER REAR-FABR (BLK) | 1 | $85.95 | |
| 18 | 2603-634 | AXLE,A-ARM-UPPER-INNER | 1 | $3.71 | |
| 19 | 2603-577 | BRG, GARLOCK SPLIT-LWR ARM | 1 | $6.47 |
