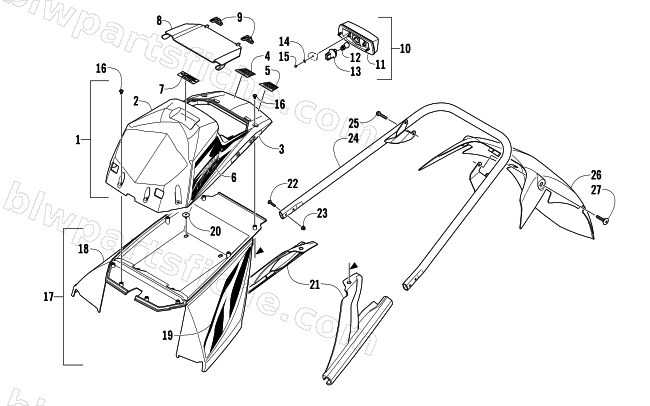

2008 Arctic Cat F6 EFI SNO PRO — REAR BUMPER, STORAGE BOX, AND TAILLIGHT ASSEMBLY
2008 F6 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4706-055 | BAG,TOOL KIT-ASSY(08 PROD) | 1 | $30.95 | |
| 1 | 2718-193 | BOX,STORAGE-REAR-GRN W/DECALS | 1 | $193.95 | |
| 1 | 2718-194 | BOX,STORAGE-REAR-INJ GREY W/DECALS | 1 | $203.95 | |
| 1 | 2718-195 | BOX,STORAGE-REAR-ORN W/DECALS | 1 | $181.95 | |
| 2 | 2718-394 | BOX,STORAGE-REAR-GRN W/O DECALS | 1 | $129.95 | |
| 2 | 2718-395 | BOX,STORAGE-REAR-INJ GREY W/O DECALS | 1 | $125.95 | |
| 2 | 2718-396 | BOX,STORAGE-REAR-ORN W/O DECALS | 1 | $129.95 | |
| 3 | 8611-182 | DECAL,REFLECTOR-RED-RH | 1 | $26.95 | |
| 3 | 8611-183 | DECAL,REFLECTOR-RED-LH | 1 | $26.95 | |
| 4 | 7611-432 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $15.11 | |
| 5 | 7611-433 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $15.11 | |
| 6 | 8611-018 | DECAL,REAR FENDER-GRN RH "AC F6" | 1 | $52.95 | |
| 6 | 8611-019 | DECAL,REAR FENDER-GRN LH "AC F6" | 1 | $52.95 | |
| 6 | 8611-044 | DECAL,REAR FENDER-BLK RH "AC F6" | 1 | $52.95 | |
| 6 | 8611-045 | DECAL,REAR FENDER-BLK LH "AC F6" | 1 | $52.95 | |
| 6 | 8611-070 | DECAL,REAR FENDER-ORN RH "AC F6" | 1 | $52.95 | |
| 6 | 8611-071 | DECAL,REAR FENDER-ORN LH "AC F6" | 1 | $52.95 | |
| 7 | 7611-902 | DECAL,STORAGE BOX-SEAT ADJUSTMENT | 1 | $73.95 | |
| 8 | 4606-735 | LID,STORAGE BOX-MOLD GRN | 1 | $24.95 | |
| 8 | 5606-079 | LID,STORAGE BOX-MOLD INJECTION GREY | 1 | $24.95 | |
| 8 | 4606-734 | LID,STORAGE BOX-MOLD ORN | 1 | $24.95 | |
| 9 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 10 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 11 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 12 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 13 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 14 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 15 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 16 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 17 | 2718-184 | FENDER,REAR TUNNEL (ROUTED)-BLK W/DECAL | 1 | $205.95 | |
| 17 | 2718-185 | FENDER,REAR TUNNEL (ROUTED)-BLK W/DECAL | 1 | $225.95 | |
| 17 | 2718-186 | FENDER,REAR TUNNEL (ROUTED)-BLK W/DECAL | 1 | $219.95 | |
| 18 | 4706-162 | FENDER,REAR-ROUTED BLK | 1 | $200.95 | |
| 19 | 8611-024 | DECAL,REAR FENDER-LWR GRN RH | 1 | $56.95 | |
| 19 | 8611-025 | DECAL,REAR FENDER-LWR GRN LH | 1 | $52.95 | |
| 19 | 8611-050 | DECAL,REAR FENDER-LWR BLK RH | 1 | $44.95 | |
| 19 | 8611-051 | DECAL,REAR FENDER-LWR BLK LH | 1 | $41.95 | |
| 19 | 8611-076 | DECAL,REAR FENDER-LWR ORN RH | 1 | $54.95 | |
| 19 | 8611-077 | DECAL,REAR FENDER-LWR ORN LH | 1 | $54.95 | |
| 20 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 21 | 4606-728 | PANEL,FILLER-SNOW FLAP-RH | 1 | $32.95 | |
| 21 | 4606-729 | PANEL,FILLER-SNOW FLAP-LH | 1 | $32.95 | |
| 22 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 1707-103 | BUMPER,REAR-128" WELD'T | 1 | $128.95 | |
| 25 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 26 | 3706-920 | FLAP,SNOW-ROUTED | 1 | $200.95 | |
| 27 | 1623-532 | SCREW,SELF TAPPING-M8X45 TRILOBE Z&Y | 1 | $7.95 |
