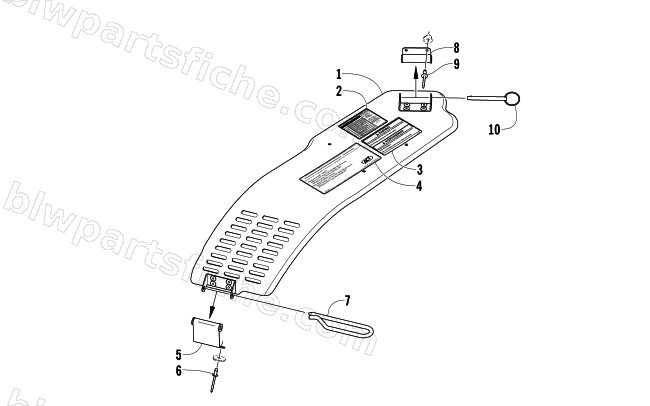

2008 Arctic Cat F6 EFI SNO PRO — BELT GUARD ASSEMBLY
2008 F6 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-153 | GUARD,CLUTCH-ASSY | 1 | $291.95 | |
| 2 | 8611-251 | DECAL,EFI DIAGNOSTIC CODES-08 | 1 | $4.13 | |
| 3 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 4 | 8611-255 | DECAL,CLUTCHING-2008 F6 | 1 | $29.95 | |
| 5 | 1707-168 | HINGE, CLUTCH SHEILD-FRT-W/INSERTS | 1 | $15.11 | |
| 6 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 7 | 1623-720 | PIN, CLUTCH GUARD | 1 | $16.49 | |
| 8 | 1707-169 | HINGE, CLUTCH SHIELD-REAR-W/INSERTS | 1 | $13.73 | |
| 9 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 10 | 1623-012 | PIN, CLUTCH GUARD | 1 | $15.11 |
