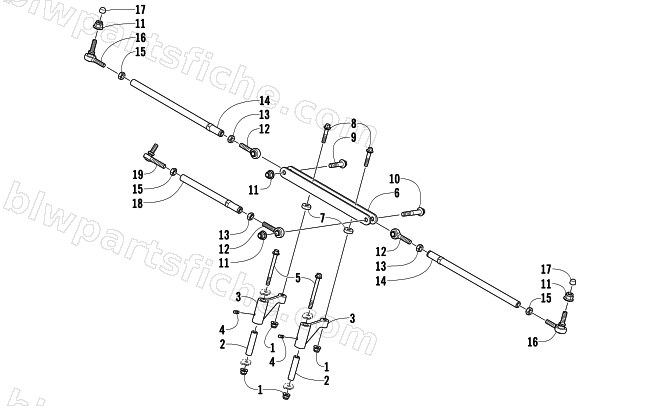

TIE ROD ASSEMBLY
2008 F6 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 2 | 2603-436 | AXLE,BELL CRANK | 1 | $9.59 | |
| 3 | 1707-115 | BELLCRANK,STEERING-FABR | 1 | $73.95 | |
| 4 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 5 | 8408-885 | SCREW,CAP-HFH M8X1.25X85 CL8.8 Z&Y | 1 | $2.75 | |
| 6 | 1705-217 | DRAG LINK W/BEARING | 1 | $223.95 | |
| 7 | 0605-760 | BEARING (22MM PRESS) | 1 | $10.97 | |
| 8 | 1623-662 | SCREW,SHOULDER-HFH M8X1.25X40 CL8.8Z&Y | 1 | $1.92 | |
| 9 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 | |
| 10 | 8408-065 | SCREW,CAP-HFH M10X1.25X65 CL8.8 Z&Y | 1 | $3.16 | |
| 11 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 12 | 1605-018 | ROD END-RH M10X1.25 (10MM BORE) | 1 | $43.95 | |
| 13 | 8420-002 | NUT,HEX - M10 X 1.25 CL8 Z&Y | 1 | $0.68 | |
| 14 | 0605-926 | TUBE,TIE ROD-M10X1.25X314MM | 1 | $26.95 | |
| 15 | 0423-013 | NUT,HEX M10-1.25(LH) Z&Y | 1 | $1.09 | |
| 16 | 1605-019 | ROD END-LH M10X1.25 THD W/STUD | 1 | $54.95 | |
| 17 | 4606-818 | CAP,TIE ROD-COVER | 1 | $1.09 | |
| 18 | 0605-925 | TUBE,TIE ROD-M10X1.25X193MM | 1 | $26.95 | |
| 19 | 1605-021 | ROD END, LH M10 X 1.25 W/STUD | 1 | $54.95 |
