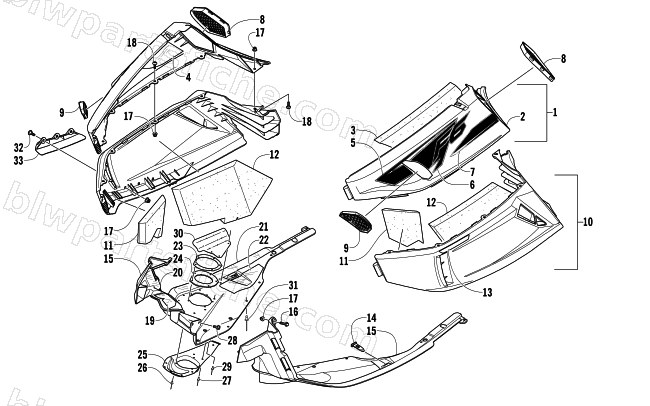

2008 Arctic Cat F6 EFI LXR — SKID PLATE AND SIDE PANEL ASSEMBLY
2008 F6 EFI LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-222 | PANEL,SIDE-UPR WHT-RH-W/DECALS (F6 GRN/B | 1 | $360.95 | |
| 1 | 2718-223 | PANEL,SIDE-UPR WHT-LH-W/DECALS (F6 GRN/B | 1 | $313.95 | |
| 1 | 2718-224 | PANEL,SIDE-UPR WHT-RH-W/DECALS (F6 ORN) | 1 | $360.95 | |
| 1 | 2718-225 | PANEL,SIDE-UPR WHT-LH-W/DECALS (F6 ORN) | 1 | $324.95 | |
| 1 | 2718-444 | PANEL,SIDE-UPR PNK-RH W/DECALS | 1 | $360.95 | |
| 1 | 2718-445 | PANEL,SIDE-UPR PNK-LH W/DECALS | 1 | $360.95 | |
| 2 | 2718-356 | PANEL,SIDE-UPR-W/O DECALS RH-WHITE | 1 | $263.95 | |
| 2 | 2718-357 | PANEL,SIDE-UPR-W/O DECALS LH-WHITE | 1 | $255.95 | |
| 3 | 0617-562 | FOAM,UPR SIDE PANEL-RH | 1 | $46.95 | |
| 3 | 0617-563 | FOAM,UPR SIDE PANEL-LH | 1 | $16.49 | |
| 4 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 5 | 7611-978 | DECAL,UPR PANEL-FWD-RH | 1 | $90.95 | |
| 5 | 7611-979 | DECAL,UPR PANEL-FWD-LH | 1 | $30.95 | |
| 5 | 8611-096 | DECAL,UPR PANEL-FWD-RH | 1 | $30.95 | |
| 5 | 8611-097 | DECAL,UPR PANEL-FWD-LH | 1 | $30.95 | |
| 5 | 8611-288 | DECAL,UPR PANEL-FWD PNK RH | 1 | $30.95 | |
| 5 | 8611-289 | DECAL,UPR PANEL-FWD PNK LH | 1 | $30.95 | |
| 6 | 7611-982 | DECAL,UPR PANEL-CENTER RH "F6" | 1 | $38.95 | |
| 6 | 7611-983 | DECAL,UPR PANEL-CENTER LH "F6" | 1 | $39.95 | |
| 6 | 8611-100 | DECAL,UPR PANEL-ORN CENTER RH-"F6" | 1 | $38.95 | |
| 6 | 8611-101 | DECAL,UPR PANEL-ORN CENTER LH-"F6" | 1 | $36.95 | |
| 6 | 8611-290 | DECAL,UPR PANEL-CENTER PNK RH "F6" | 1 | $38.95 | |
| 6 | 8611-291 | DECAL,UPR PANEL-CENTER PNK LH "F6" | 1 | $38.95 | |
| 7 | 7611-988 | DECAL,UPR PANEL-REAR-RH | 1 | $26.95 | |
| 7 | 7611-989 | DECAL,UPR PANEL-REAR-LH | 1 | $88.95 | |
| 7 | 8611-106 | DECAL,UPR PANEL-ORN REAR RH | 1 | $26.95 | |
| 7 | 8611-107 | DECAL,UPR PANEL-ORN REAR LH | 1 | $26.95 | |
| 7 | 8611-292 | DECAL,UPR PANEL-REAR PNK RH | 1 | $26.95 | |
| 7 | 8611-293 | DECAL,UPR PANEL-REAR PNK LH | 1 | $26.95 | |
| 8 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 8 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 9 | 4606-662 | VENT,UPR PANEL-RH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 9 | 4606-663 | VENT,UPR PANEL-LH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 10 | 2718-524 | PANEL,SIDE-LWR-W/O DECALS RH-BLK(2 STRK) | 1 | $288.95 | |
| 10 | 2718-525 | PANEL,SIDE-LWR-W/O DECALS LH-BLK | 1 | $279.95 | |
| 11 | 0617-564 | FOAM,LWR SIDE PANEL-FRT RH | 1 | $16.49 | |
| 11 | 0617-566 | FOAM,LWR SIDE PANEL-FRT LH(19mm THK) | 1 | $16.49 | |
| 12 | 0617-568 | FOAM,LWR SIDE PANEL-REAR RH | 1 | $93.95 | |
| 12 | 0617-567 | FOAM,LWR SIDE PANEL- REAR LH (19mm THK) | 1 | $93.95 | |
| 13 | 8611-181 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 14 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 15 | 3706-706 | PLATE,SKID-BLK RH-ROUTED | 1 | $62.95 | |
| 15 | 4706-073 | PLATE, SKID-LH-BLK-ROUTED-F/C | 1 | $57.95 | |
| 16 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 17 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 18 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 19 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 20 | 4606-982 | FOIL,RH SKID PLATE-HINGE | 1 | $15.11 | |
| 21 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 22 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 23 | 1712-348 | PLATE,EXHAUST OUTLET SEAL-PTD BLK | 1 | $15.11 | |
| 24 | 2612-156 | SEAL,EXHAUST OUTLET-2 STRK | 1 | $17.87 | |
| 25 | 1712-501 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $32.95 | |
| 26 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 27 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 28 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 29 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 30 | 2612-268 | SHIELD,HEAT-RH SKID PLATE | 1 | $22.01 | |
| 31 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 32 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 33 | 5606-404 | DEFLECTOR,EXHAUST | 1 | $9.79 |
