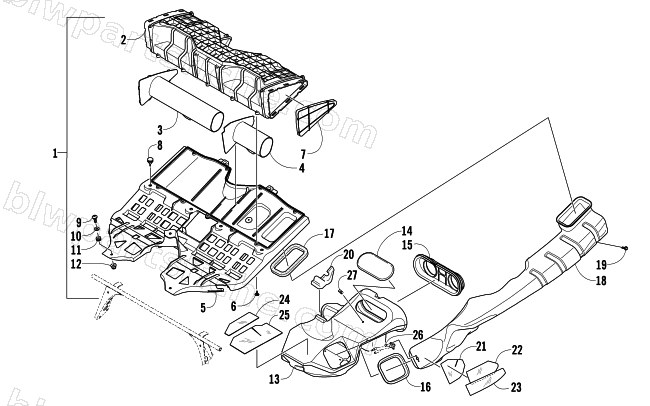

AIR SILENCER ASSEMBLY
2008 F6 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-744 | INTAKE,SUPPORT-ASSY-2 STROKE | 1 | $249.95 | |
| 2 | 1670-732 | INTAKE SUPPORT - TOP | 1 | $66.95 | |
| 3 | 1670-852 | RESONATOR,UPR PLENUM-RH | 1 | $41.95 | |
| 4 | 1670-853 | RESONATOR,UPR PLENUM-LH | 1 | $37.95 | |
| 5 | 1670-742 | INTAKE,SUPPORT-BOTTOM-2 STROKE | 1 | $105.95 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 1670-831 | COVER,TOP PLENUM-LH | 1 | $13.73 | |
| 8 | 4606-276 | GROMMET,HEADLIGHT-REAR | 1 | $12.35 | |
| 9 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 10 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 11 | 4606-275 | GROMMET,HEADLIGHT-FRONT | 1 | $6.75 | |
| 12 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 13 | 0770-771 | SILENCER,AIR-ROUTED | 1 | $298.95 | |
| 14 | 1670-902 | SEAL,AIR SILENCER | 1 | $27.95 | |
| 15 | 1670-862 | BOOT,EFI-500 | 1 | $26.95 | |
| 16 | 1670-765 | SEAL, LOWER AIR SILENCER | 1 | $45.95 | |
| 17 | 1670-764 | SEAL, UPPER AIR SILENCER | 1 | $5.09 | |
| 18 | 0770-769 | DUCT,INTAKE-SIDE-ROUTED | 1 | $84.95 | |
| 19 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 20 | 2612-254 | BUMPER,EXHAUST-RUBBER | 1 | $57.95 | |
| 21 | 4606-928 | FOIL,INTAKE DUCT-FWD | 1 | $5.37 | |
| 22 | 4606-929 | FOIL,INTAKE DUCT-UPR | 1 | $5.37 | |
| 23 | 4606-930 | FOIL,INTAKE DUCT-LWR | 1 | $19.25 | |
| 24 | 4606-932 | FOIL,AIR SILENCER-RH | 1 | $5.51 | |
| 25 | 4606-933 | FOIL,AIR SILENCER-LH | 1 | $12.35 | |
| 26 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 27 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 |
