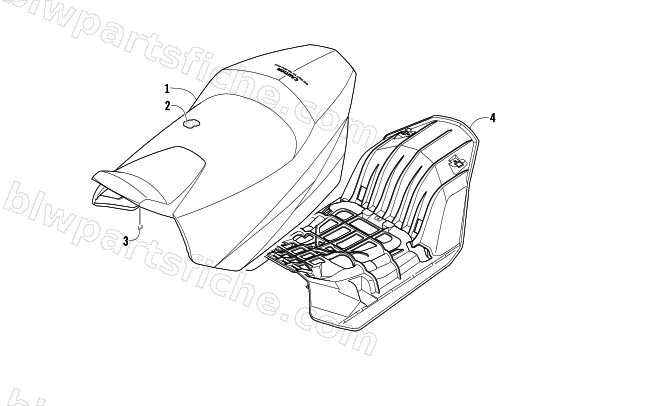

2008 Arctic Cat F570 — SEAT ASSEMBLY
2008 F570
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7999-817 | SEAT, MFG ASSY-08 F/C GRN | 1 | $596.95 | |
| 0 | 7800-034 | SEAT,MFG ASSY-08 F/C-BLK | 1 | $614.95 | |
| 0 | 7999-629 | SEAT, MFG ASSY-08 F/C-ORN | 1 | $596.95 | |
| 1 | 3706-952 | COVER, SEAT-08 F/C GRN | 1 | $454.95 | |
| 1 | 4706-173 | COVER,SEAT-08 F/C BLK | 1 | $434.95 | |
| 1 | 3706-875 | COVER, SEAT-08 F/C-ORANGE | 1 | $454.95 | |
| 2 | 0617-553 | FOAM, SEAT-F/C (109-115ILD).50R@5.0 | 1 | $156.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 4 | 5606-083 | SEAT BASE - PLASTIC | 1 | $112.95 |
