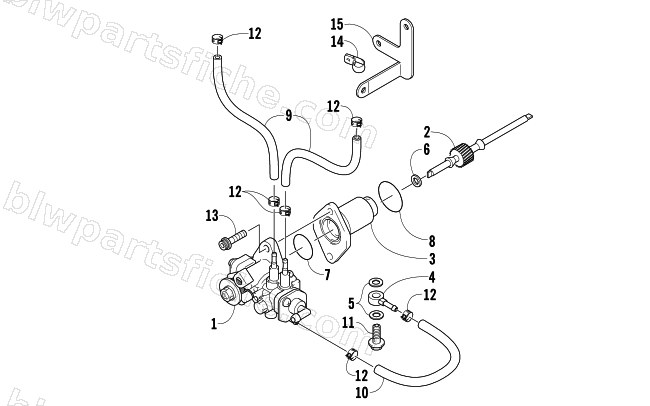

2008 Arctic Cat F5 EFI — OIL PUMP
2008 F5 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-694 | PUMP,OIL-ASSY | 1 | $664.95 | |
| 2 | 3006-354 | GEAR,OIL PUMP DRIVEN '02 440 SNO PRO | 1 | $187.95 | |
| 3 | 3004-804 | RETAINER PUMP,OIL | 1 | $118.95 | |
| 4 | 3004-805 | VALVE OIL NOZZLE | 1 | $49.95 | |
| 5 | 3402-009 | WASHER, DRIVEN, M6.2X11X1.2 | 1 | $2.47 | |
| 6 | 3005-049 | SHIM,10MM | 1 | $3.57 | |
| 7 | 3008-030 | O RING O:1.5 ID:19.5 | 1 | $3.85 | |
| 8 | 3005-126 | O RING | 1 | $4.26 | |
| 9 | 3008-035 | HOSE, M3X7X600 | 1 | $34.95 | |
| 10 | 3005-357 | HOSE, M2.5X7X600 | 1 | $24.77 | |
| 11 | 3004-346 | BOLT, UNION | 1 | $4.68 | |
| 12 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 13 | 3007-471 | BOLT | 1 | $3.16 | |
| 14 | 3005-696 | CLAMP | 1 | $12.35 | |
| 15 | 3007-472 | BRACKET,OIL PUMP | 1 | $20.63 |
