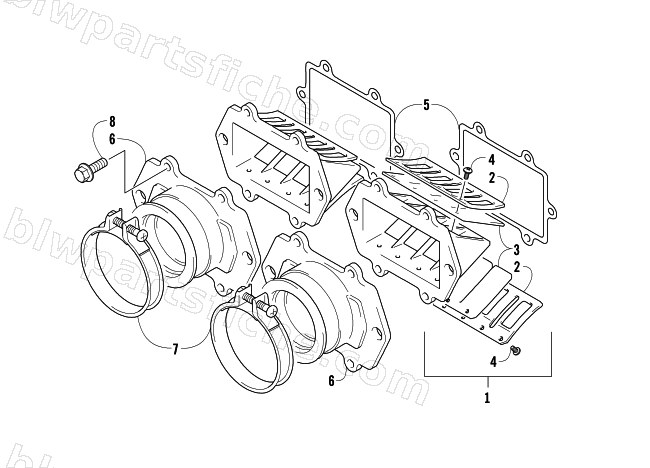

2008 Arctic Cat F1000 EFI SNO PRO — REED VALVE ASSEMBLY
2008 F1000 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-282 | VALVE ASSY,REED | 1 | $231.95 | |
| 2 | 3007-283 | STOPPER,REED VALVE | 1 | $29.95 | |
| 3 | 3007-048 | VALVE,REED | 1 | $34.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 3005-879 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3007-284 | PIPE,INTAKE | 1 | $169.95 | |
| 7 | 3007-719 | CLAMP,INTAKE PIPE | 1 | $15.11 | |
| 8 | 3007-380 | BOLT | 1 | $3.16 |
