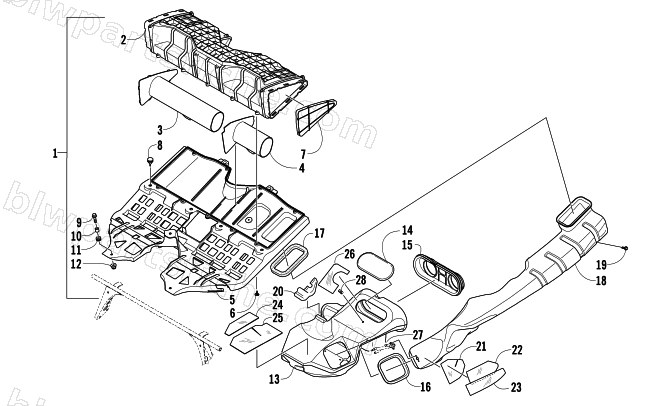

2008 Arctic Cat F1000 EFI SNO PRO LIMITED EDITION — AIR SILENCER ASSEMBLY
2008 F1000 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-744 | INTAKE,SUPPORT-ASSY-2 STROKE | 1 | $249.95 | |
| 2 | 1670-732 | INTAKE SUPPORT - TOP | 1 | $66.95 | |
| 3 | 1670-852 | RESONATOR,UPR PLENUM-RH | 1 | $41.95 | |
| 4 | 1670-853 | RESONATOR,UPR PLENUM-LH | 1 | $37.95 | |
| 5 | 1670-742 | INTAKE,SUPPORT-BOTTOM-2 STROKE | 1 | $105.95 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 1670-831 | COVER,TOP PLENUM-LH | 1 | $13.73 | |
| 8 | 4606-276 | GROMMET,HEADLIGHT-REAR | 1 | $12.35 | |
| 9 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 10 | 1623-612 | SPACER,9.0 OD X 6.4 ID X 10.5MM | 1 | $3.57 | |
| 11 | 4606-275 | GROMMET,HEADLIGHT-FRONT | 1 | $6.75 | |
| 12 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 13 | 0770-771 | SILENCER,AIR-ROUTED | 1 | $298.95 | |
| 14 | 1670-902 | SEAL,AIR SILENCER | 1 | $27.95 | |
| 15 | 1670-860 | BOOT,EFI-1000 | 1 | $48.95 | |
| 16 | 1670-765 | SEAL, LOWER AIR SILENCER | 1 | $45.95 | |
| 17 | 1670-764 | SEAL, UPPER AIR SILENCER | 1 | $5.09 | |
| 18 | 0770-769 | DUCT,INTAKE-SIDE-ROUTED | 1 | $84.95 | |
| 19 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 20 | 2612-254 | BUMPER,EXHAUST-RUBBER | 1 | $57.95 | |
| 21 | 4606-928 | FOIL,INTAKE DUCT-FWD | 1 | $5.37 | |
| 22 | 4606-929 | FOIL,INTAKE DUCT-UPR | 1 | $5.37 | |
| 23 | 4606-930 | FOIL,INTAKE DUCT-LWR | 1 | $19.25 | |
| 24 | 4606-932 | FOIL,AIR SILENCER-RH | 1 | $5.51 | |
| 25 | 4606-933 | FOIL,AIR SILENCER-LH | 1 | $12.35 | |
| 26 | 4606-931 | FOIL,AIR SILENCER-RH REAR | 1 | $20.63 | |
| 27 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 28 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 |
