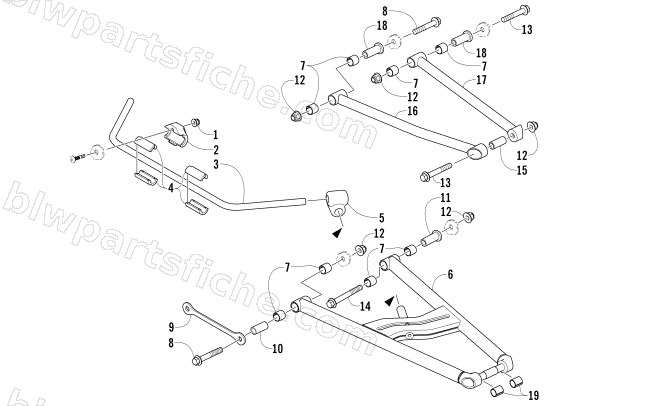

2008 Arctic Cat F1000 EFI SNO PRO LIMITED EDITION — A-ARM AND SWAY BAR ASSEMBLY SNO PRO NIGHTFIRE LIMITED EDITION
2008 F1000 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 2 | 2603-818 | BRKT,MTG-SWAY BAR (Z&Y STEEL) | 1 | $30.95 | |
| 3 | 2703-323 | BAR,SWAY-FORMED-13.5 PTD BLK | 1 | $109.95 | |
| 4 | 2603-712 | SLEEVE,SWAY BAR - 13.5 MM | 1 | $6.06 | |
| 5 | 2603-710 | LINK,SWAY BAR-13.5 MM | 1 | $26.95 | |
| 6 | 2703-464 | A-ARM,LWR-FABR(BLK) | 1 | $188.95 | |
| 7 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 8 | 8408-070 | SCREW,CAP-HFH M10X1.25X70 CL8.8 Z&Y | 1 | $2.06 | |
| 9 | 4606-402 | BRACE,A-ARM-LOWER | 1 | $8.21 | |
| 10 | 2603-544 | AXLE, A-ARM-LWR-FRONT | 1 | $2.88 | |
| 11 | 2603-543 | AXLE, A-ARM-LWR-REAR | 1 | $3.99 | |
| 12 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 13 | 8408-065 | SCREW,CAP-HFH M10X1.25X65 CL8.8 Z&Y | 1 | $3.16 | |
| 14 | 8408-090 | SCREW,CAP-HFH M10X1.25X90 CL8.8 Z&Y | 1 | $3.85 | |
| 15 | 2603-643 | AXLE,SPINDLE UPR A-ARM-OUTER | 1 | $3.30 | |
| 16 | 2703-262 | ARM,UPPER FRT-FABR (BLK) | 1 | $85.95 | |
| 17 | 2703-248 | ARM,UPPER REAR-FABR (BLK) | 1 | $85.95 | |
| 18 | 2603-634 | AXLE,A-ARM-UPPER-INNER | 1 | $3.71 | |
| 19 | 2603-577 | BRG, GARLOCK SPLIT-LWR ARM | 1 | $6.47 |
