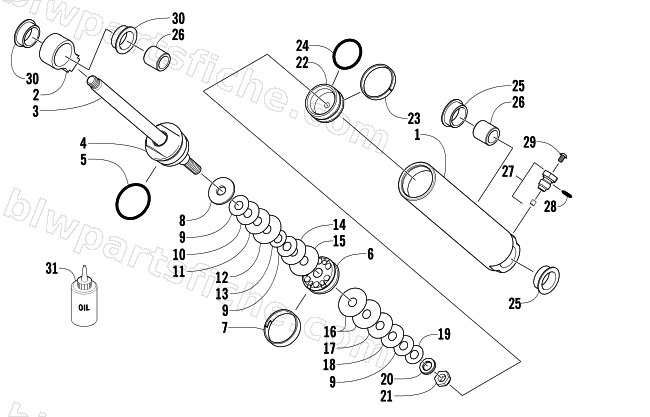

2008 Arctic Cat CROSSFIRE 800 EFI — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2008 CROSSFIRE 800 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-117 | SHOCK,REAR ARM -IMP - ALUM - ASSY | 1 | $505.95 | |
| 1 | 2604-598 | BODY,RR SHOCK-1.75 x 7.374 -IMP EXTR | 1 | $239.95 | |
| 2 | 1603-503 | EYELET,SHOCK - 1.000 DIA X 1.137 LGTH | 1 | $26.95 | |
| 4 | 4604-126 | BEARING, ENDCAP - LONG - W/BLEED ASSY | 1 | $49.95 | |
| 5 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 6 | 1603-314 | PISTON,0.039 ORIFICE | 1 | $120.95 | |
| 7 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 8 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 9 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 10 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 11 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 12 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 13 | 2603-040 | VALVE,SHOCK- .700 DIA X .004 | 1 | $5.95 | |
| 14 | 2603-094 | VALVE,SHOCK-1.100 DIA X .008 | 1 | $5.95 | |
| 15 | 2603-135 | VALVE,SHOCK-1.300 DIA X .010 | 1 | $5.95 | |
| 16 | 2603-126 | VALVE,SHOCK-1.250 DIA X .012 | 1 | $5.95 | |
| 17 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 18 | 2603-076 | VALVE,SHOCK-1.000 DIA X .012 | 1 | $5.95 | |
| 19 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 20 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 21 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 22 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 23 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 24 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 25 | 2604-164 | BUSHING,SHOCK-REAR ARM-GRAY | 1 | $9.59 | |
| 26 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 | |
| 27 | 0704-796 | VALVE,PRESSURE-ASSY | 1 | $28.95 | |
| 28 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 29 | 0624-546 | SCREW,MACHINE-HSBH 6-32X1/4SS | 1 | $0.55 | |
| 30 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 31 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
