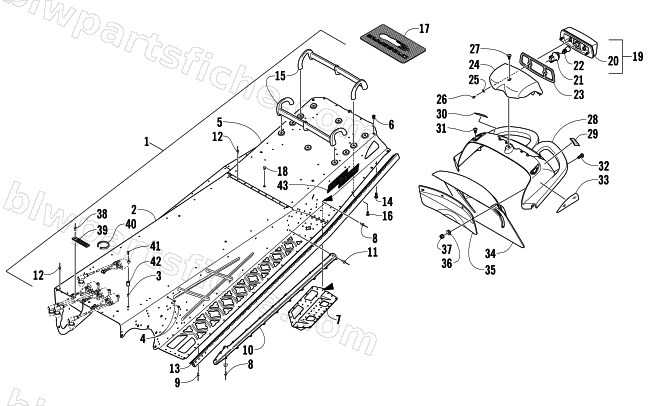

2008 Arctic Cat CROSSFIRE 1000 EFI SNO PRO LIMITED EDITION — TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
2008 CROSSFIRE 1000 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-512 | TUNNEL-S/P ASSY-PTD BLK | 1 | $887.95 | |
| 2 | 2718-510 | TUNNEL,FRONT-W/INSERTS-PTD BLK | 1 | $575.95 | |
| 3 | 1623-562 | INSERT, AL SERIES ALS4-1024-130 | 1 | $2.75 | |
| 4 | 1623-657 | INSERT,AT SERIES-ATS2-1024 | 1 | $3.57 | |
| 5 | 2718-511 | TUNNEL,REAR-W/INSERTS-PTD BLK | 1 | $199.95 | |
| 6 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 7 | 3706-152 | BRKT,SUSP MTG-PTD RH | 1 | $35.95 | |
| 7 | 3706-153 | BRKT,SUSP MTG-PTD LH | 1 | $35.95 | |
| 8 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 9 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 10 | 4706-170 | BRKT,TUNNEL SUPPORT-RH-PTD BLK | 1 | $53.95 | |
| 10 | 4706-171 | BRKT,TUNNEL SUPPORT-LH-PTD BLK | 1 | $53.95 | |
| 11 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 12 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 13 | 4706-168 | ROLL,TUNNEL-RH-PTD BLK | 1 | $84.95 | |
| 13 | 4706-169 | ROLL,TUNNEL-LH-PTD BLK | 1 | $84.95 | |
| 14 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 15 | 3606-584 | RACK,PLASTIC-INJ MOLD | 1 | $331.95 | |
| 16 | 1623-499 | SCREW,MACH-TSTRH 1/4-20X0.5 G2 W/204 | 1 | $1.09 | |
| 17 | 4606-149 | PAD,RUBBER-TUNNEL | 1 | $17.87 | |
| 18 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 19 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 20 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 21 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 22 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 23 | 4606-382 | SPACER,TAILLIGHT-.25" | 1 | $49.95 | |
| 24 | 3606-747 | HOUSING,TAILLIGHT-INJ MOLD | 1 | $162.95 | |
| 25 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 26 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 27 | 1623-513 | SCREW,MACH-TSTRH 1/4-20X1.75 RIEW/204DPT | 1 | $3.95 | |
| 28 | 3606-431 | BUMPER,REAR-BLACK-INJ MOLD | 1 | $220.95 | |
| 29 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 30 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 31 | 1623-501 | SCREW,MACH-TSTRH 1/4-20X0.5 RIE W/204 | 1 | $4.26 | |
| 32 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 33 | 8611-010 | DECAL,REFLECTOR-REAR-RH (RED) | 1 | $26.95 | |
| 33 | 8611-011 | DECAL,REFLECTOR-REAR-LH (RED) | 1 | $26.95 | |
| 34 | 5606-254 | SNOWFLAP, BLK-W/8611-268 | 1 | $84.95 | |
| 35 | 3606-776 | SUPPORT,SNOWFLAP-INJ MOLD | 1 | $45.95 | |
| 36 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 37 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 38 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 39 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 40 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 41 | 1623-671 | SCREW,MACH-TSTRH 10-24X1.75 G2 W/204 | 1 | $1.23 | |
| 42 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 | |
| 43 | 8611-307 | DECAL,REAR-"SNO PRO" | 1 | $24.95 | |
| 43 | 1707-229 | CHASSIS/TUNNEL-S/P ASSY-PTD BLK | 1 | $1,956.59 |
