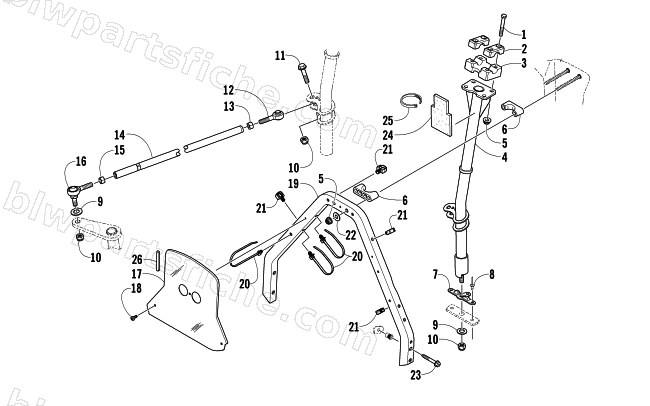

2008 Arctic Cat CROSSFIRE 1000 EFI SNO PRO LIMITED EDITION — STEERING POST ASSEMBLY
2008 CROSSFIRE 1000 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8002-138 | SCREW,CAP-HH 5/16-18 X2.25 G5 Z&Y | 1 | $0.95 | |
| 2 | 0605-506 | CAP,STEERING ADJUSTER | 1 | $13.73 | |
| 3 | 0605-507 | LOCK,ADJUSTING-STEERING | 1 | $60.95 | |
| 4 | 1705-349 | POST,STEERING-PTD BLK | 1 | $156.95 | |
| 5 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 6 | 0605-576 | BLOCK,MTG-STEERING POST | 1 | $6.75 | |
| 7 | 0605-943 | STOP,STEERING POST-FORGED | 1 | $30.95 | |
| 8 | 8060-888 | RIVET,BLIND-DH SS86 ZINC | 1 | $1.23 | |
| 9 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 10 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 11 | 8004-225 | SCREW,CAP-HH 3/8-24X1.50 G5 Z&Y | 1 | $1.23 | |
| 12 | 1605-010 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $43.95 | |
| 13 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 14 | 0605-856 | TUBE,TIE ROD-.625 X 20.81" (3/8-24) | 1 | $34.95 | |
| 15 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 16 | 1605-011 | ROD END,LH-3/8-24 W/STUD | 1 | $43.95 | |
| 17 | 5606-501 | PANEL,CLOSE OUT-FORMED | 1 | $89.95 | |
| 18 | 1623-353 | SCREW,SELF TAP-TSPNH 10-24 X 3/8 Z&Y | 1 | $1.64 | |
| 19 | 1705-260 | TUBE,SUPPORT-STEERING POST-MACH/FORMED | 1 | $125.95 | |
| 20 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 21 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 | |
| 22 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 23 | 1623-482 | SCREW,CAP-HFH 5/16 18X2.0 ZY (204) DPT | 1 | $2.75 | |
| 24 | 0617-538 | FOAM,STEERING POST-3/8"THK | 1 | $2.95 | |
| 25 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 26 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 |
