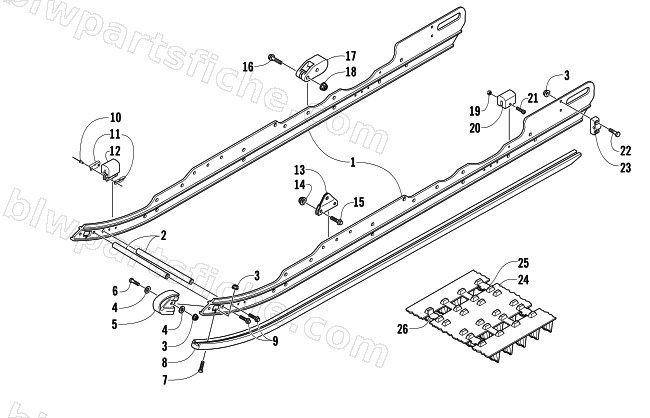

2008 Arctic Cat BEARCAT WIDE TRACK TURBO — SLIDE RAIL AND TRACK ASSEMBLY
2008 BEARCAT WIDE TRACK TURBO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7999-885 | REAR SUSP, MFG ASSY-08 BCWT-ARTICULATED | 1 | $5,134.95 | |
| 0 | 7999-888 | REAR SUSP, MFG ASSY-08 BCWT | 1 | $5,293.95 | |
| 1 | 3604-193 | RAIL,SUSP-STAMPED-FORMED (BCWT 660) | 1 | $282.95 | |
| 1 | 3604-192 | RAIL,SUSP-STAMPED-FORMED (BCWT TURBO) | 1 | $277.95 | |
| 2 | 0604-938 | SUPPORT,RAIL-REAR .625 X 13.250 | 1 | $36.95 | |
| 3 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 2604-842 | NOSEPIECE,RAIL-TAPERED | 1 | $30.95 | |
| 5 | 2604-724 | NOSEPIECE,RAIL-EXVOLUTE-MC | 1 | $19.25 | |
| 6 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 7 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 8 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 9 | 1623-502 | SCREW,CAP-HFH 5/16-18X1.25 W/2353 | 1 | $1.78 | |
| 10 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 11 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 12 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 13 | 8020-132 | SCREW,CAP-HFH 5/16-18 X1.00 G5 Z&Y | 1 | $1.95 | |
| 14 | 0704-395 | BRKT,MTG-FRONT ARM-PTD BLK | 1 | $20.63 | |
| 15 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 16 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 17 | 1604-413 | BLOCK,SPRING TENSION | 1 | $22.01 | |
| 18 | 8020-227 | SCREW,CAP-HFH 3/8-16 X 2.00 Z&Y | 1 | $2.47 | |
| 19 | 0602-962 | TRACK,20X156X13.58X2.52X1.00 | 1 | $1,329.95 | |
| 19 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 20 | 2602-384 | CLIP,WEAR | 1 | $3.57 | |
| 20 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 21 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 21 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 22 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 23 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 24 | 1602-869 | TRACK, 20X156X13.58X2.52X1.25 | 1 | $1,477.95 |
