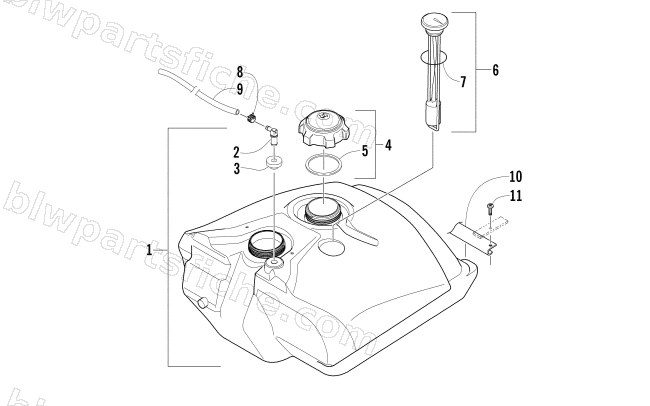

2008 Arctic Cat BEARCAT WIDE TRACK TURBO — GAS TANK ASSEMBLY
2008 BEARCAT WIDE TRACK TURBO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0644-409 | KIT, TOOL-04 4-STROKE | 1 | $50.95 | |
| 1 | 0770-737 | TANK,GAS-S/P ASSY | 1 | $611.95 | |
| 1 | 0770-835 | TANK,GAS-S/P ASSY | 1 | $580.95 | |
| 2 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 3 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 4 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 5 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 6 | 1670-725 | GAUGE,FUELW/GASKET | 1 | $108.95 | |
| 7 | 0470-400 | SEAL,GAS GAUGE (REF 0470-379) | 1 | $4.68 | |
| 8 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 | |
| 9 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 9 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 10 | 3706-138 | HOLDDOWN, FUEL TANK-PTD | 1 | $24.95 | |
| 11 | 1623-175 | SCREW,SELF TAP-TSTRH 10-24X3/4 TP F Z | 1 | $13.73 |
