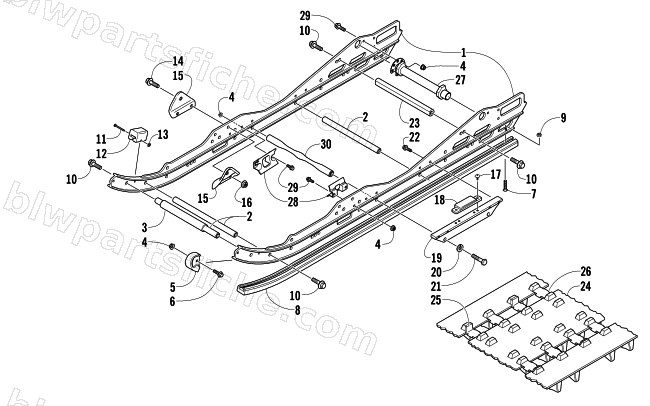

2008 Arctic Cat AC 600 SNO PRO — SLIDE RAILS AND TRACK ASSEMBLY
2008 AC 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7999-961 | SUSPENSION,REAR-MFG ASSY | 1 | $5,134.95 | |
| 1 | 3604-368 | RAIL,SUSP - FORMED | 1 | $305.95 | |
| 2 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 3 | 3604-389 | SPACER,ALUM-8.650" | 1 | $29.95 | |
| 4 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 5 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 6 | 1623-539 | SCREW,CAP-HFH 1/4-20 X 1 GR 5 Z&Y | 1 | $17.87 | |
| 7 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 8 | 3604-369 | WEARSTRIP,SLIDE RAIL-47.18" | 1 | $31.95 | |
| 9 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 1623-536 | SCREW,CAP-HFH 3/8-16 X 1.250 W/2353 | 1 | $3.16 | |
| 11 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 12 | 2604-868 | PAD,SHOCK-RUBBER | 1 | $24.77 | |
| 13 | 0623-773 | PUSHNUT - 3/16 DIA STUD | 1 | $1.09 | |
| 14 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 | |
| 15 | 2604-593 | BRACKET,MTG-FRONT ARM-ZINC | 1 | $22.01 | |
| 16 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 17 | 1623-404 | SCREW,MACH-TXSTRH 10-24X.5 GR2 W/2353 | 1 | $2.06 | |
| 18 | 2604-656 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 19 | 1704-804 | BRACE,RAIL-PTD BLK | 1 | $260.95 | |
| 20 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 21 | 1623-535 | SCREW,CAP-HH 3/8-16 X1.75 G5 W/2353 | 1 | $2.47 | |
| 22 | 1623-544 | SCREW,CAP-HFH 1/4-20 X 0.750 W/2353 | 1 | $1.92 | |
| 23 | 2604-259 | CROSSBRACE,REAR ARM | 1 | $34.95 | |
| 24 | 2602-147 | TRACK,15X128.5X1.700" | 1 | $1,263.95 | |
| 25 | 2602-385 | CLIP,GUIDE | 1 | $4.40 | |
| 26 | 2602-384 | CLIP,WEAR | 1 | $3.57 | |
| 27 | 1704-400 | BLOCK,COUPLING-PTD BLK | 1 | $75.95 | |
| 28 | 3604-122 | MOUNT,RESERVOIR-MACH | 1 | $34.95 | |
| 29 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 30 | 1704-582 | AXLE,ALUM-.625 X 8.75-MACH | 1 | $110.95 |
