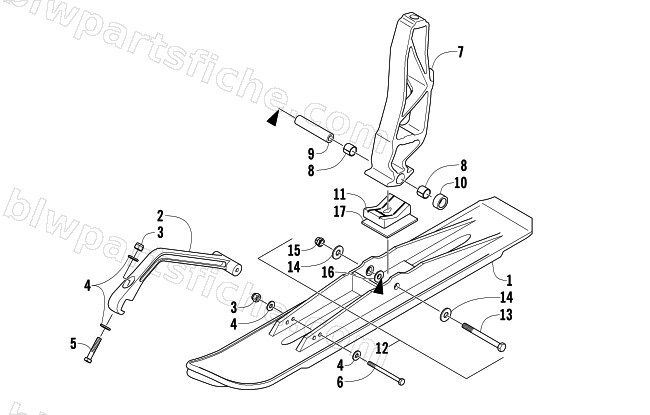

2008 Arctic Cat AC 600 SNO PRO — SKI AND SPINDLE ASSEMBLY
2008 AC 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7999-577 | SKI,PLASTIC-W/LOOP ASSY (PRIDE) | 1 | $506.95 | |
| 2 | 2603-708 | SKI,HANDLE (PRIDE) | 1 | $121.95 | |
| 3 | 0623-928 | NUT, HEX-NSL 5/16-18 Z&C | 1 | $0.95 | |
| 4 | 0623-927 | WASHER,FLAT-5/16 ID X .688 X .065 Z&C | 1 | $0.26 | |
| 5 | 1623-685 | SCREW,CAP-HH 5/16-18X2 1/4 GR8 Z&C | 1 | $12.95 | |
| 6 | 1623-684 | SCREW,CAP-HH 5/16-18X4 1/2 GR8 Z&C | 1 | $13.73 | |
| 7 | 2703-512 | SPINDLE,BILLET-RH-FABR | 1 | $286.95 | |
| 7 | 2703-513 | SPINDLE,BILLET-LH-FABR | 1 | $287.95 | |
| 8 | 2603-481 | BEARING,GARLOCK (12DU16) | 1 | $2.75 | |
| 9 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 10 | 1603-908 | SPACER,SPINDLE-PLASTIC SKI | 1 | $13.73 | |
| 11 | 2603-760 | DAMPER,SKI-RUBBER | 1 | $13.95 | |
| 12 | 1623-433 | KIT,HARDWARE-C&A PRO SKI'S | 1 | $85.95 | |
| 13 | 1623-434 | SCREW,CAP-HH 7/16-14 X 5 GR 5 Z&C | 1 | $2.75 | |
| 14 | 0623-929 | WASHER,FLAT-7/16 X 1 1/2 X 3/16 Z&C | 1 | $4.68 | |
| 15 | 8040-545 | NUT,HEX LOCK-NYL 7/16-14 Z&C | 1 | $0.45 | |
| 16 | 1603-513 | SPOOLS, 7/16" | 1 | $20.63 | |
| 17 | 2603-811 | SPACER,SKI DAMPER | 1 | $3.44 |
