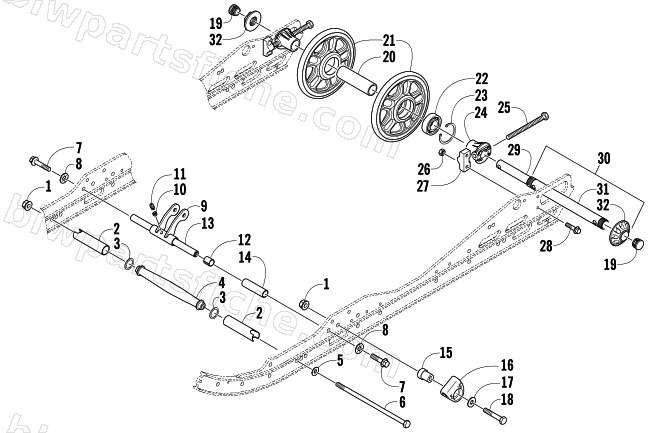

IDLER WHEEL ASSEMBLY
2008 AC 600 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 2 | 2604-401 | SPACER, FRONT ARM SHOCK | 1 | $52.95 | |
| 3 | 1623-117 | WASHER,FLAT-1.02ID X 1.32OD | 1 | $3.16 | |
| 4 | 2604-867 | AXLE,STEEL-1.00X.375X8.750 | 1 | $106.95 | |
| 5 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 6 | 0623-907 | SCREW, CAP-HH 3/8-16X10.0 GR5 Z&Y | 1 | $4.26 | |
| 7 | 1623-536 | SCREW,CAP-HFH 3/8-16 X 1.250 W/2353 | 1 | $3.16 | |
| 8 | 1623-218 | WASHER,NORD-LOCK-3/8" | 1 | $2.95 | |
| 9 | 1704-630 | PIVOT,REAR SHOCK-FABR | 1 | $31.95 | |
| 10 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 11 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 12 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 13 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 14 | 2604-109 | SPACER,ALUM-2.805" | 1 | $12.35 | |
| 15 | 2604-378 | BLOCK,SLIDE-SPRING-1.53" | 1 | $16.49 | |
| 16 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 17 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 18 | 8002-229 | SCREW,CAP-HH 3/8-16 X2.50 G5 Z&Y | 1 | $1.50 | |
| 19 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 20 | 2604-115 | SPACER, ALUM- 1.00 ID X 1.25 OD | 1 | $24.77 | |
| 21 | 3604-185 | WHEEL,IDLER-7.125 | 1 | $53.95 | |
| 22 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 23 | 1623-622 | RING,RETAINING-EXTERNAL-#206 | 1 | $5.51 | |
| 24 | 2604-970 | BUSHING,ADJUSTER | 1 | $18.95 | |
| 25 | 1623-414 | SCREW,CAP-HH-3/8-16X4.15 GR 5 | 1 | $16.95 | |
| 26 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 27 | 1704-379 | ADJUSTER,TRACK-MACH | 1 | $27.95 | |
| 28 | 1623-539 | SCREW,CAP-HFH 1/4-20 X 1 GR 5 Z&Y | 1 | $17.87 | |
| 29 | 2604-915 | INSERT,AXLE | 1 | $66.95 | |
| 30 | 1704-435 | AXLE,REAR-W/NUT-LH SIDE ASSY | 1 | $109.95 | |
| 31 | 1704-421 | AXLE,REAR-MACH | 1 | $83.95 | |
| 32 | 2604-914 | NUT,AXLE | 1 | $22.01 |
