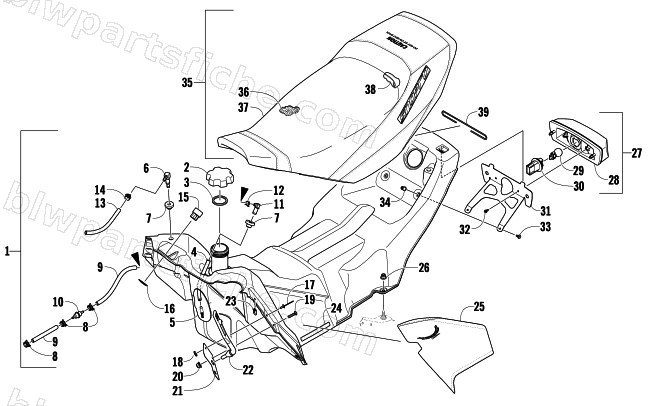

2008 Arctic Cat AC 600 SNO PRO — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2008 AC 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-887 | R/B 0770-947 | 1 | $731.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 3 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 4 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 0109-284 | ELBOW,GAS TANK | 1 | $27.95 | |
| 7 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 8 | 1623-197 | CLAMP, HOSE-SPRING-14MM | 1 | $2.75 | |
| 9 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 10 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 11 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 12 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 13 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 14 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 15 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 16 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 17 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 18 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 19 | 8470-525 | SCREW,MACH-TSPNH M5X.8X25 CL8.8 Z&Y | 1 | $2.47 | |
| 20 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 21 | 4706-352 | BRKT,MTG-HOOD-PTD BLK | 1 | $20.63 | |
| 22 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 23 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 24 | 6990-284 | VELCRO,HOOK W/ADH-1"X60" | 1 | $81.95 | |
| 25 | 4706-414 | COVER,GAS TANK-RH | 1 | $217.95 | |
| 25 | 4706-415 | COVER,GAS TANK-LH | 1 | $212.95 | |
| 26 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 27 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 28 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 29 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 30 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 31 | 5606-638 | BRKT,MTG-TAIL LIGHT | 1 | $37.95 | |
| 32 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 33 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 34 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 35 | 7999-978 | SEAT,MFG ASSY | 1 | $397.95 | |
| 36 | 0717-198 | FOAM,SEAT-.50R/3.5(85-90 ILD) | 1 | $145.95 | |
| 37 | 4706-143 | COVER,SEAT-W/DECAL | 1 | $321.95 | |
| 39 | 5606-380 | WIRE,SEAT - 279 MM - FORMED | 1 | $2.88 |
