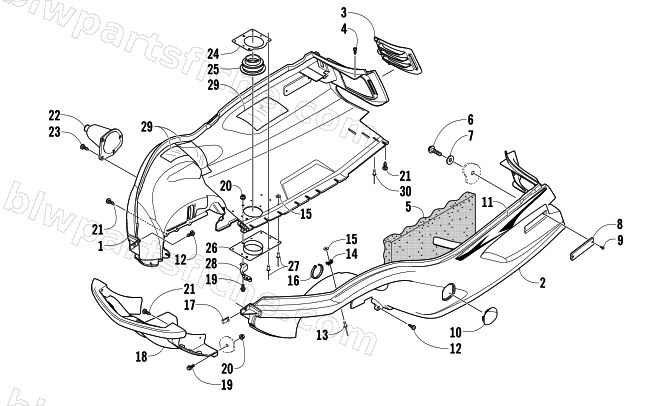

BELLY PAN AND FRONT BUMPER ASSEMBLY
2007 Z 370
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1706-110 | BELLY PAN, RH-ROUTED (Z) | 1 | $175.95 | |
| 2 | 1706-141 | BELLY PAN, LH-ROUTED | 1 | $405.95 | |
| 3 | 1606-044 | LOUVER, AIR INTAKE-RH-BLK | 1 | $46.95 | |
| 3 | 1606-045 | LOUVER, AIR INTAKE-LH-BLK | 1 | $46.95 | |
| 4 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 5 | 0617-315 | FOAM,BELLYPAN LH | 1 | $33.95 | |
| 6 | 0623-647 | SCREW,SELF TAP-HWH 1/4X2.0 A Z&Y | 1 | $0.95 | |
| 7 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 8 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 9 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 10 | 1606-767 | PANEL, CLUTCH ACCESS-BLK | 1 | $33.95 | |
| 11 | 7611-312 | DECAL, BELLYPAN-RH-Z ORG | 1 | $34.95 | |
| 11 | 7611-313 | DECAL, BELLYPAN-LH-Z ORG | 1 | $34.95 | |
| 12 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 13 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 14 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 15 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 16 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 17 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 18 | 2606-224 | BUMPER,FR ROUTED | 1 | $152.95 | |
| 19 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 20 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 21 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 22 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 22 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 23 | 1623-429 | SCREW, SELF TAP - #12X1.00 TYPE AB-Z&Y | 1 | $0.95 | |
| 24 | 0712-881 | RING,EXHAUST OUTLET-UPPER-PTD BLK | 1 | $10.95 | |
| 25 | 1612-027 | BOOT,EXHAUST-1.78 | 1 | $50.95 | |
| 26 | 0712-880 | RING,EXHAUST OUTLET-LOWER-PTD BLK | 1 | $13.95 | |
| 27 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 28 | 0712-879 | DEFLECTOR,EXHAUST-OUTLET-PTD BLK | 1 | $13.95 | |
| 29 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 30 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 |
