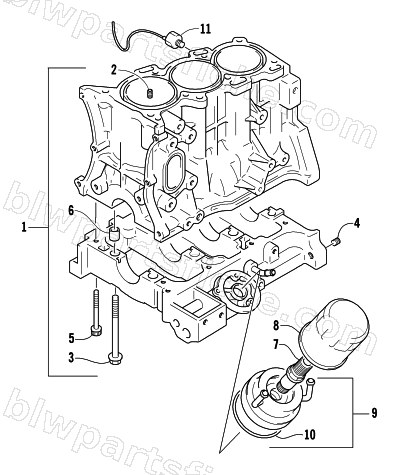

2007 Arctic Cat T660 TURBO TOURING — CYLINDER BLOCK/BASE ASSEMBLY
2007 T660 TURBO TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-964 | BLOCK ASSY,CYLINDER | 1 | $2,848.95 | |
| 2 | 3007-372 | PLUG,OIL VENTURI | 1 | $12.35 | |
| 3 | 3006-133 | BOLT, '02 660 L/C | 1 | $13.73 | |
| 4 | 3006-116 | PLUG, '02 660 L/C | 1 | $18.95 | |
| 5 | 3006-141 | BOLT, '02 660 L/C | 1 | $13.73 | |
| 6 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 7 | 3006-564 | STAND,OIL FILTER | 1 | $47.95 | |
| 8 | 3005-948 | FILTER, OIL | 1 | $27.95 | |
| 9 | 3006-565 | COOLER ASSY,OIL | 1 | $861.95 | |
| 10 | 3006-566 | GASKET-660 L/C | 1 | $26.95 | |
| 11 | 3006-886 | SENSOR ASS'Y,KNOCK | 1 | $357.95 |
