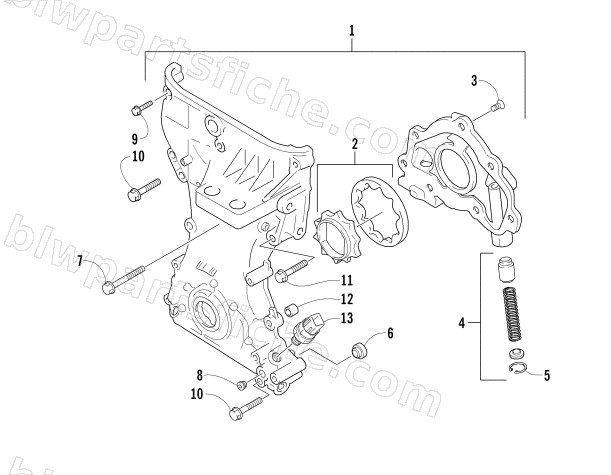

2007 Arctic Cat T660 TOURING — TIMING CHAIN COVER/OIL PUMP ASSEMBLY
2007 T660 TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-219 | PUMP ASSY,OIL '02 660 L/C | 1 | $964.95 | |
| 2 | 3006-220 | ROTOR SET,OIL PUMP '02 660 L/C | 1 | $314.95 | |
| 3 | 3007-393 | SCREW,M6X16 | 1 | $2.06 | |
| 4 | 3006-221 | VALVE SET,OIL PUMP RELIEF '02 660 L/C | 1 | $43.95 | |
| 5 | 3007-394 | CIRCLIP | 1 | $3.95 | |
| 6 | 3007-032 | FILTER,OIL GALLERY | 1 | $23.39 | |
| 7 | 3006-755 | BOLT,8X40 | 1 | $3.95 | |
| 8 | 3423-386 | PLUG, RH | 1 | $10.97 | |
| 9 | 3007-395 | BOLT | 1 | $3.44 | |
| 10 | 3007-386 | BOLT | 1 | $3.16 | |
| 11 | 3007-396 | BOLT, CYLINDER HEAD-M8X40 | 1 | $4.68 | |
| 12 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 13 | 3006-844 | SWITCH ASS'Y,OIL PRESSURE | 1 | $68.95 |
