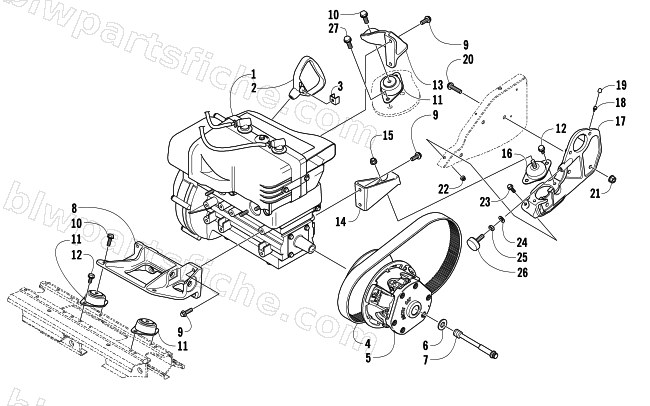

2007 Arctic Cat PANTHER 570 — ENGINE AND RELATED PARTS
2007 PANTHER 570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-462 | ENGINE, 570 F/C-'07 GEN II-PROD | 1 | $2,206.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-805 | BUSHING,MTG-HEADLIGHT POD | 1 | $19.25 | |
| 4 | 0627-021 | BELT,DRIVE-REG COMPOUND- 12.2 CTRS | 1 | $92.95 | |
| 5 | 0746-168 | CLUTCH, DRIVE, UNCAL (370/440) | 1 | $971.95 | |
| 6 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 7 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 8 | 0745-154 | BRKT,ENG MTG-FRNT FLEX ES 560 W/ BUSH | 1 | $148.95 | |
| 9 | 1623-553 | SCREW, CAP-HFH 5/16-18 X .750 W/2353 | 1 | $1.37 | |
| 10 | 1623-560 | SCREW, CAP-HFH 3/8-16 X 0.75 W/204 | 1 | $2.75 | |
| 11 | 0608-645 | MOUNT,ENGINE | 1 | $113.95 | |
| 12 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 13 | 0708-132 | BRKT,ENG MTG-MAG RR-MACH | 1 | $71.95 | |
| 14 | 0708-133 | BRKT,ENG,MTG-PTO REAR(MACHINED) | 1 | $93.95 | |
| 15 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 16 | 0708-145 | MOUNT,ENGINE-ASSY | 1 | $40.95 | |
| 17 | 0708-139 | BRKT,BEARING SUPPORT-ASSY | 1 | $109.95 | |
| 18 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 19 | 0623-904 | CAP, GREASE FITTING | 1 | $0.85 | |
| 20 | 8020-224 | SCREW,CAP-HFH 3/8-16 X 1.250 Z&Y | 1 | $13.73 | |
| 22 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 23 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 24 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 25 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 26 | 0608-355 | R/B 0608-784 | 1 | $19.95 | |
| 27 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 |
