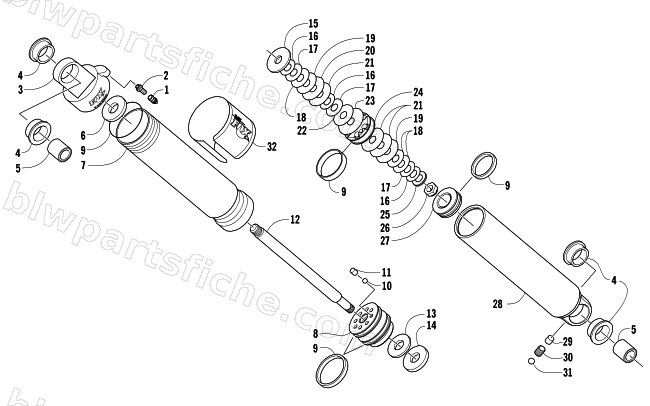

2007 Arctic Cat M1000 EFI 153 SNO PRO — FRONT SUSPENSION SHOCK ABSORBER
2007 M1000 EFI 153 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-137 | SHOCK,SKI-FLOAT 17.55"-ASSY | 1 | $907.95 | |
| 0 | 2603-498 | REBUILD KIT,FLOAT W/RESERVOIR | 1 | $178.95 | |
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 0 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 3 | 2603-418 | CAP,AIR SLEEVE-FLOAT ASSY | 1 | $181.95 | |
| 4 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 5 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 6 | 2603-613 | SPACER,AIR VOLUME REDUCER-.1875" | 1 | $16.95 | |
| 7 | 2603-412 | SLEEVE,AIR-ASSY-8.415"-(FLOAT) | 1 | $306.95 | |
| 8 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 9 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 10 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 11 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 12 | 2603-416 | SHAFT,SHOCK-.498 X 8.850" | 1 | $143.95 | |
| 13 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 14 | 2603-474 | SPACER,.504ID X 1.25OD X .250THK 6061AL | 1 | $29.95 | |
| 15 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 16 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 17 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 18 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 19 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 20 | 0603-345 | VALVE,1.250X.006(3/8ID) | 1 | $12.95 | |
| 21 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 22 | 0603-342 | VALVE,1.100X.006(3/8ID) | 1 | $6.95 | |
| 23 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 24 | 2603-309 | PISTON,DAMPING-1.459 BORE-.093 ORIFICE | 1 | $34.95 | |
| 25 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 26 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 27 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 28 | 2603-414 | BODY,FLOAT SHOCK-8.825" | 1 | $447.95 | |
| 29 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 30 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 31 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 32 | 2603-610 | DECAL,FOX FLOAT-2006 | 1 | $38.95 |
