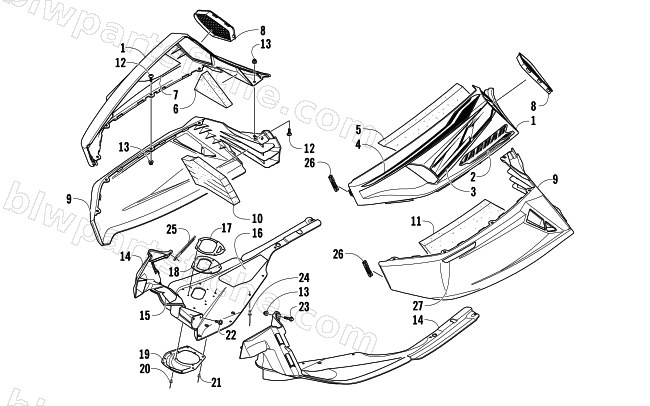

2007 Arctic Cat JAGUAR Z1 EARLY BUILD — SKID PLATE AND SIDE PANEL ASSEMBLY
2007 JAGUAR Z1 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4706-763 | KIT,REPLACEMENT-SPAR/PANEL/SKID-RH | 1 | $592.95 | |
| 1 | 4706-768 | KIT,REPLACEMENT-SPAR/PANEL/SKID-LH | 1 | $547.95 | |
| 2 | 7611-568 | DECAL,VENT-LWR PANEL-RH | 1 | $30.95 | |
| 2 | 7611-569 | DECAL,VENT-LWR PANEL-LH | 1 | $34.95 | |
| 3 | 7611-566 | DECAL,VENT-CENTER PANEL-RH | 1 | $33.95 | |
| 3 | 7611-567 | DECAL,VENT-CENTER PANEL-LH | 1 | $35.95 | |
| 4 | 7611-564 | DECAL,VENT-UPR PANEL-RH | 1 | $48.95 | |
| 4 | 7611-565 | DECAL,VENT-UPR PANEL-LH | 1 | $48.95 | |
| 5 | 0617-514 | FOAM,UPR SIDE PANEL-RH | 1 | $47.95 | |
| 5 | 0617-515 | FOAM,UPR SIDE PANEL-LH | 1 | $44.95 | |
| 6 | 0617-528 | FOAM,UPR SIDE PANEL-REAR | 1 | $6.06 | |
| 7 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 8 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 8 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 9 | 3706-704 | PANEL,SIDE-LOWER RH-W/FOAM | 1 | $220.95 | |
| 10 | 0617-530 | FOAM,LWR SIDE PANEL-REAR RH | 1 | $26.95 | |
| 10 | 0617-531 | FOAM,LWR SIDE PANEL-REAR LH | 1 | $24.77 | |
| 11 | 0617-516 | FOAM,LWR SIDE PANEL-RH | 1 | $69.95 | |
| 11 | 0617-517 | FOAM,LWR SIDE PANEL-LH | 1 | $87.95 | |
| 12 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 3706-705 | PLATE,SKID-RH-W/FOIL | 1 | $66.95 | |
| 14 | 4606-707 | PLATE,SKID-LH-MOLD BLK | 1 | $53.95 | |
| 15 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 16 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 17 | 1712-328 | PLATE,EXH-OUTLET SEAL-PTD | 1 | $56.95 | |
| 18 | 2612-122 | SEAL,EXHAUST-OUTLET-4 STRK | 1 | $17.87 | |
| 19 | 1712-501 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $32.95 | |
| 20 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 21 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 22 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 23 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 24 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 25 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 26 | 3706-523 | RETAINER,HINGE-SIDE PANEL-MACH | 1 | $64.95 | |
| 27 | 7611-798 | DECAL,REFLECTOR-AMBER | 1 | $14.95 |
