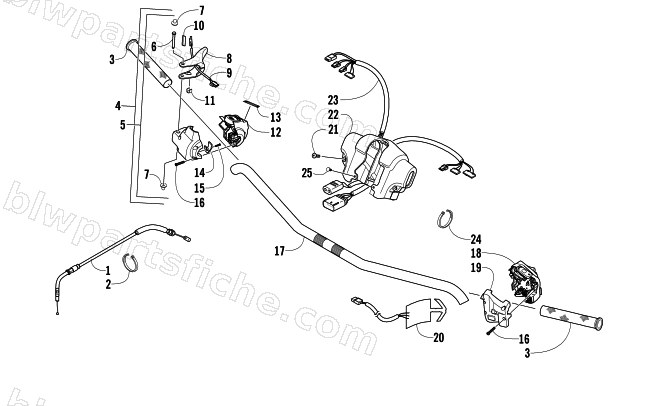

2007 Arctic Cat JAGUAR Z1 EARLY BUILD — HANDLEBAR AND CONTROLS
2007 JAGUAR Z1 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0687-204 | CABLE, THROTTLE-SINGLE W/O OIL | 1 | $112.95 | |
| 2 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 3 | 1606-442 | GRIP,HANDLEBAR-RH-6.25" | 1 | $19.25 | |
| 4 | 0609-882 | CONTROL,THROTTLE-R/H-REAR (34MM) | 1 | $105.95 | |
| 5 | 0609-859 | KIT, THROTTLE LEVER MOUNTING | 1 | $30.95 | |
| 8 | 0609-796 | LEVER, THROTTLE-35MM | 1 | $28.95 | |
| 9 | 0609-827 | ELEMENT,THUMBWARMER-H/L (15V) | 1 | $74.95 | |
| 10 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 11 | 0609-595 | CLIP,RETAINER-TW HARNESS | 1 | $2.47 | |
| 12 | 0609-753 | CONTROL, R/H-FRONT W/REV | 1 | $158.95 | |
| 13 | 7611-770 | DECAL,REVERSE-RH CONTROL | 1 | $26.95 | |
| 14 | 0609-792 | COVER, CONTROL-RH-CONNECTOR RETENTION | 1 | $1.92 | |
| 15 | 0609-793 | SCREW, #4-24 HI-LO X .50" | 1 | $0.26 | |
| 16 | 0609-791 | SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO | 1 | $0.12 | |
| 17 | 1705-092 | HANDLEBAR-PTD BLK | 1 | $77.95 | |
| 18 | 0609-929 | CONTROL,LH-W/O PTT-FRT | 1 | $96.95 | |
| 19 | 0609-756 | CONTROL, L/H-REAR | 1 | $22.01 | |
| 20 | 0609-762 | ELEMENT, HW-RH H/L | 1 | $89.95 | |
| 20 | 0609-763 | ELEMENT, HW-LH H/L | 1 | $89.95 | |
| 21 | 0623-128 | SCREW,SELF TAP-TRH TYPE II | 1 | $0.95 | |
| 22 | 3606-693 | PAD,HANDLEBAR-ADJUSTABLE | 1 | $43.95 | |
| 23 | 1686-319 | HARNESS,HANDLEBAR-4 STROKE | 1 | $180.95 | |
| 24 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 25 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 |
