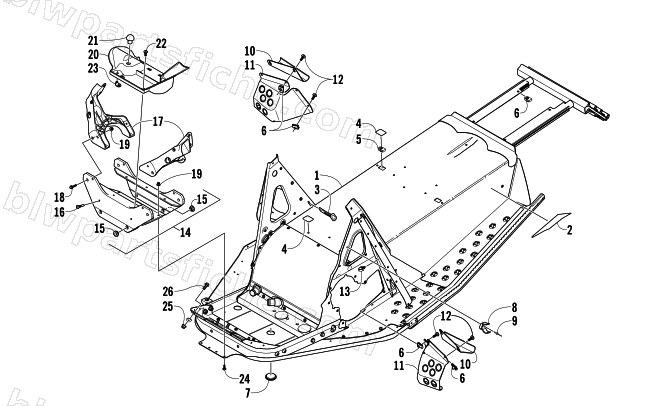

2007 Arctic Cat JAGUAR Z1 EARLY BUILD — CHASSIS ASSEMBLY
2007 JAGUAR Z1 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3706-392 | CHASSIS ASSY-PTD(07 JAGUAR) | 1 | $2,110.95 | |
| 2 | 7611-800 | DECAL,REFLECTOR-RED-RH | 1 | $14.95 | |
| 2 | 7611-801 | DECAL,REFLECTOR-RED-LH | 1 | $14.95 | |
| 3 | 4606-454 | STRAP,HOLDDOWN-UPR PANEL-RH | 1 | $4.68 | |
| 3 | 4606-455 | STRAP,HOLDDOWN-UPR PANEL-LH | 1 | $4.68 | |
| 4 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 5 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 6 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 7 | 1623-625 | PLUG,CENTER PAN | 1 | $1.09 | |
| 8 | 1670-826 | BRKT,FUEL FILTER-F3 | 1 | $6.34 | |
| 9 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 10 | 3706-412 | BRKT,TOE HOOK-RH-PTD MATTE BLK | 1 | $20.95 | |
| 10 | 3706-413 | BRKT,TOE HOOK-LH-PTD MATTE BLK | 1 | $20.95 | |
| 11 | 3706-410 | SHIELD,TOE-RH-PTD MATTE BLK | 1 | $61.95 | |
| 11 | 3706-411 | SHIELD,TOE-LH-PTD MATTE BLK | 1 | $61.95 | |
| 12 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 13 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 14 | 0707-977 | BRKT, FRT SUSP MTG-W/BUSHINGS | 1 | $479.95 | |
| 15 | 0605-763 | BUSHING,LWR A-ARM | 1 | $3.44 | |
| 16 | 1623-443 | BOLT, RIBBED NECK M6 X 35 Z&Y | 1 | $1.78 | |
| 17 | 0607-806 | FRAME, UPPER-SHOCK MTG-RH | 1 | $128.95 | |
| 17 | 0607-807 | FRAME, UPPER-SHOCK MTG-LH | 1 | $128.95 | |
| 18 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 20 | 4606-308 | CLOSE OFF,COVER-FRONT END | 1 | $19.25 | |
| 21 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 22 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 23 | 4606-770 | TAB,RESONATOR MTG | 1 | $9.59 | |
| 24 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 25 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 26 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 |
