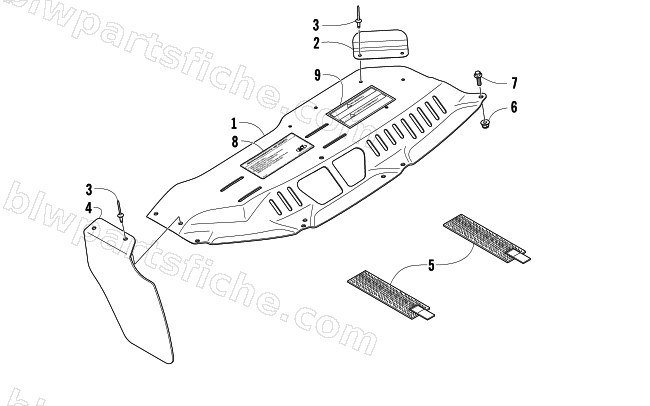

2007 Arctic Cat JAGUAR Z1 EARLY BUILD — BELT GUARD ASSEMBLY
2007 JAGUAR Z1 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0607-847 | GUARD, CLUTCH | 1 | $93.95 | |
| 2 | 0607-892 | BRKT,LATCH-CLUTCH GUARD | 1 | $12.35 | |
| 3 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 4 | 0607-909 | GUARD,CLUTCH-FRONT | 1 | $32.95 | |
| 5 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 8 | 7611-330 | DECAL,CLUTCHING-07 Z1 | 1 | $29.95 | |
| 9 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 |
