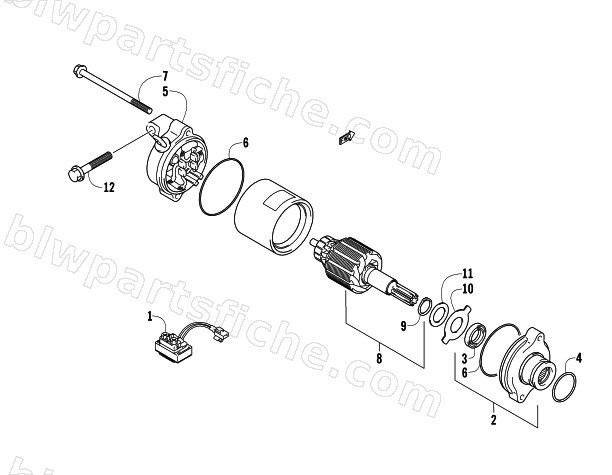

2007 Arctic Cat JAGUAR Z1 1100 EFI — STARTER MOTOR ASSEMBLY
2007 JAGUAR Z1 1100 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-230 | RELAY ASSY,STARTER MOTOR | 1 | $189.95 | |
| 2 | 3007-220 | HOUSING ASSY | 1 | $351.95 | |
| 3 | 3007-221 | SEAL,OIL | 1 | $100.95 | |
| 4 | 3007-222 | O RING | 1 | $23.39 | |
| 5 | 3007-223 | BRUSH ASSY | 1 | $248.95 | |
| 6 | 3007-224 | O RING | 1 | $26.95 | |
| 7 | 3007-225 | BOLT | 1 | $11.95 | |
| 8 | 3007-226 | ARMATURE ASSY | 1 | $451.95 | |
| 9 | 3007-227 | RING,SNAP | 1 | $6.47 | |
| 10 | 3007-228 | PLATE,LOCK | 1 | $6.47 | |
| 11 | 3007-229 | SHIM | 1 | $4.95 | |
| 12 | 0693-397 | BOLT,M8X35 | 1 | $7.95 |
