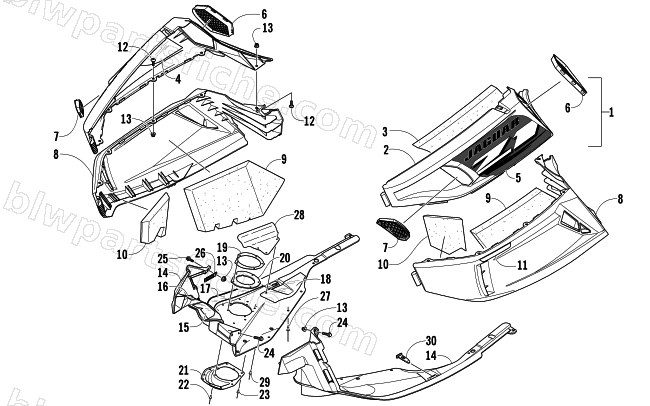

2007 Arctic Cat JAGUAR Z1 1100 EFI — SKID PLATE AND SIDE PANEL ASSEMBLY
2007 JAGUAR Z1 1100 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-300 | PANEL,SIDE-UPR BLK-RH-W/DECALS | 1 | $360.95 | |
| 1 | 2718-301 | PANEL,SIDE-UPR BLK-LH-W/DECALS | 1 | $362.95 | |
| 1 | 2718-302 | PANEL,SIDE-UPR RED-RH-W/DECALS | 1 | $351.95 | |
| 1 | 2718-303 | PANEL,SIDE-UPR RED-LH-W/DECALS | 1 | $316.95 | |
| 1 | 2718-298 | PANEL,SIDE-UPR GRN-RH-W/DECALS | 1 | $360.95 | |
| 1 | 2718-299 | PANEL,SIDE-UPR GRN-LH-W/DECALS | 1 | $360.95 | |
| 2 | 2718-288 | PANEL,SIDE-UPPER RH W/O DECALS-BLK | 1 | $271.95 | |
| 2 | 2718-289 | PANEL,SIDE-UPR-W/O DECALS-LH BLK | 1 | $263.95 | |
| 2 | 2718-296 | PANEL,SIDE-UPR-W/O DECALS-RH-RED | 1 | $264.95 | |
| 2 | 2718-297 | PANEL,SIDE-UPR-W/O DECALS-LH-RED | 1 | $293.95 | |
| 2 | 2718-284 | PANEL,SIDE-UPR-W/O DECALS RH-GRN | 1 | $293.95 | |
| 2 | 2718-285 | PANEL,SIDE-UPR-W/O DECALS LH-GRN | 1 | $293.95 | |
| 3 | 0617-514 | FOAM,UPR SIDE PANEL-RH | 1 | $47.95 | |
| 3 | 0617-515 | FOAM,UPR SIDE PANEL-LH | 1 | $44.95 | |
| 4 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 5 | 7611-762 | DECAL,UPR PANEL- BLK RH(Z1) | 1 | $22.01 | |
| 5 | 7611-763 | DECAL,UPR PANEL-BLK LH(Z1) | 1 | $22.01 | |
| 5 | 7611-754 | DECAL,UPR PANEL-RED RH(Z1) | 1 | $54.95 | |
| 5 | 7611-755 | DECAL,UPR PANEL-RED LH(Z1) | 1 | $88.95 | |
| 5 | 7611-746 | DECAL,UPR PANEL-GRN RH(Z1) | 1 | $53.95 | |
| 5 | 7611-747 | DECAL,UPR PANEL-GRN LH(Z1) | 1 | $85.95 | |
| 6 | 4606-702 | VENT,UPR PANEL-REAR RH-MOLD PEWTER | 1 | $26.95 | |
| 6 | 4606-703 | VENT,UPR PANEL-REAR LH-MOLD PEWTER | 1 | $26.95 | |
| 6 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 6 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 7 | 4606-704 | VENT,UPR PANEL-RH HONEYCOMB-MOLD PEWTER | 1 | $20.95 | |
| 7 | 4606-705 | VENT,UPR PANEL-LH HONEYCOMB-MOLD PEWTER | 1 | $20.63 | |
| 7 | 4606-662 | VENT,UPR PANEL-RH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 7 | 4606-663 | VENT,UPR PANEL-LH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 8 | 2718-322 | PANEL,SIDE-LWR-W/O DEC RH-BLK-TEXTURED | 1 | $279.95 | |
| 8 | 2718-323 | PANEL,SIDE-LWR-W/O DEC LH-BLK-TEXTURED | 1 | $279.95 | |
| 9 | 0617-568 | FOAM,LWR SIDE PANEL-REAR RH | 1 | $93.95 | |
| 9 | 0617-549 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $93.95 | |
| 10 | 0617-564 | FOAM,LWR SIDE PANEL-FRT RH | 1 | $16.49 | |
| 10 | 0617-547 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $72.95 | |
| 11 | 8611-181 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 12 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 3706-706 | PLATE,SKID-BLK RH-ROUTED | 1 | $62.95 | |
| 14 | 3706-707 | PLATE,SKID-BLK LH-ROUTED | 1 | $55.95 | |
| 15 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 16 | 4606-982 | FOIL,RH SKID PLATE-HINGE | 1 | $15.11 | |
| 17 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 18 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 19 | 1712-328 | PLATE,EXH-OUTLET SEAL-PTD | 1 | $56.95 | |
| 20 | 2612-122 | SEAL,EXHAUST-OUTLET-4 STRK | 1 | $17.87 | |
| 21 | 1712-501 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $32.95 | |
| 22 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 23 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 24 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 25 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 26 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 27 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 28 | 2612-268 | SHIELD,HEAT-RH SKID PLATE | 1 | $22.01 | |
| 29 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 30 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 |
