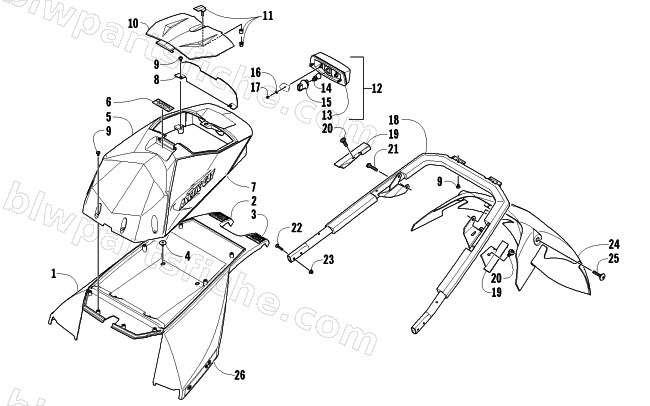

2007 Arctic Cat JAGUAR Z1 1100 EFI — REAR BUMPER, STORAGE BOX, AND TAILLIGHT ASSEMBLY
2007 JAGUAR Z1 1100 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5606-469 | FENDER,REAR-TUNNEL-MOLD BLK | 1 | $165.95 | |
| 2 | 7611-432 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $15.11 | |
| 3 | 7611-433 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $15.11 | |
| 4 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 5 | 4606-501 | BOX,STORAGE-REAR-MOLD BLK | 1 | $251.95 | |
| 6 | 7611-902 | DECAL,STORAGE BOX-SEAT ADJUSTMENT | 1 | $73.95 | |
| 7 | 7611-766 | DECAL,STORAGE BOX-BLK RH | 1 | $45.95 | |
| 7 | 7611-767 | DECAL,STORAGE BOX-BLK LH | 1 | $45.95 | |
| 7 | 7611-758 | DECAL,STORAGE BOX-RED RH | 1 | $45.95 | |
| 7 | 7611-759 | DECAL,STORAGE BOX-RED LH | 1 | $45.95 | |
| 7 | 7611-750 | DECAL,STORAGE BOX-GRN RH | 1 | $45.95 | |
| 7 | 7611-751 | DECAL,STORAGE BOX-GRN LH | 1 | $45.95 | |
| 8 | 3606-676 | COVER, TAILLIGHT | 1 | $16.95 | |
| 9 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 10 | 4606-500 | LID,STORAGE BOX-REAR-MOLD BLK | 1 | $26.95 | |
| 11 | 1406-599 | LATCH,SWELL (SOUTHCO) | 1 | $17.87 | |
| 12 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 13 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 14 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 15 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 16 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 17 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 18 | 4606-416 | BUMPER,REAR-W/ OVERMOLD | 1 | $159.95 | |
| 19 | 4606-418 | COVER,BRKT-REAR BUMPER-OVERMOLD-RH | 1 | $5.95 | |
| 19 | 4606-419 | COVER,BRKT-REAR BUMPER-OVERMOLD-LH | 1 | $9.95 | |
| 20 | 0423-396 | SCREW,SELF TAP-TSPH M6-1.0X15 | 1 | $1.09 | |
| 21 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 22 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 5606-118 | SNOWFLAP,W/8611-017 DECAL | 1 | $217.95 | |
| 25 | 1623-532 | SCREW,SELF TAPPING-M8X45 TRILOBE Z&Y | 1 | $7.95 | |
| 26 | 8611-014 | DECAL,REFLECTOR-RED-RH | 1 | $26.95 | |
| 26 | 8611-015 | DECAL,REFLECTOR-RED-LH | 1 | $29.95 |
