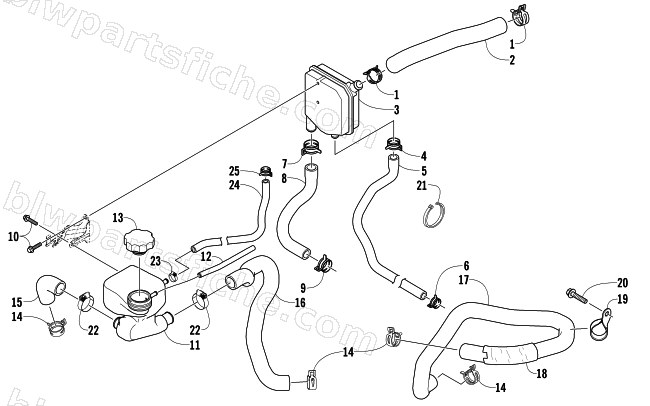

2007 Arctic Cat JAGUAR Z1 1100 EFI — COOLING ASSEMBLY
2007 JAGUAR Z1 1100 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1623-292 | CLAMP,HOSE-SPRING (12W X 29) | 1 | $3.99 | |
| 2 | 0610-667 | HOSE, BREATHER-VENT | 1 | $39.95 | |
| 3 | 0770-712 | TANK, SEPARATOR ASSY | 1 | $97.95 | |
| 4 | 1623-287 | CLAMP,HOSE-SPRING (12W X 24) | 1 | $3.44 | |
| 5 | 0610-664 | HOSE, BREATHER-OIL TANK | 1 | $33.95 | |
| 6 | 1623-285 | CLAMP,HOSE-SPRING (12W X 22) | 1 | $2.88 | |
| 7 | 1623-291 | CLAMP,HOSE-SPRING (12W X 28) | 1 | $3.57 | |
| 8 | 0610-665 | HOSE, BREATHER-SEPARATOR | 1 | $43.95 | |
| 9 | 1623-288 | CLAMP,HOSE-SPRING (12W X 25) | 1 | $3.57 | |
| 10 | 8408-610 | SCREW,CAP-HFH M6X1.0X10 CL8.8 Z&Y | 1 | $1.23 | |
| 11 | 1670-660 | TANK, COOLANT | 1 | $164.95 | |
| 12 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 12 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 13 | 4606-209 | CAP,COOLANT BOTTLE (W/THREADS) | 1 | $26.95 | |
| 15 | 0610-640 | HOSE,COOLANT-FILLER TO ENG | 1 | $26.95 | |
| 16 | 0610-639 | HOSE,COOLANT-EXCH TO FLR NECK | 1 | $59.95 | |
| 17 | 0610-638 | HOSE, COOLANT-ENG TO EXCH | 1 | $117.95 | |
| 18 | 0610-734 | LOOM,COOLANT HOSE-COVER | 1 | $20.63 | |
| 19 | 3706-369 | BRKT,COOLANT HOSE-PTD | 1 | $26.95 | |
| 20 | 8408-020 | SCREW,CAP-HFH M10X1.25X20 CL8.8 Z&Y | 1 | $3.16 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 22 | 1623-092 | CLAMP,BAND-SAE #16 | 1 | $5.09 | |
| 23 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 24 | 0610-657 | HOSE, COOLANT-BYPASS | 1 | $44.95 | |
| 25 | 1623-278 | CLAMP,HOSE-SPRING (12W X 15) | 1 | $2.06 |
