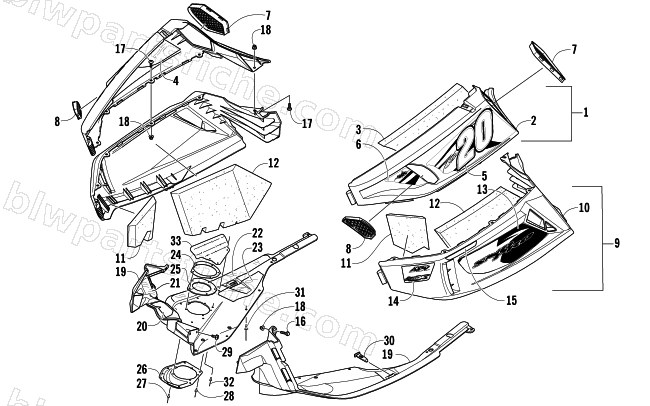

2007 Arctic Cat F8 EFI SNO PRO LIMITED EDITION — SKID PLATE AND SIDE PANEL ASSEMBLY
2007 F8 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-384 | PANEL,SIDE-UPR ORN-RH-W/DECALS | 1 | $370.95 | |
| 1 | 2718-385 | PANEL,SIDE-UPR ORN-LH-W/DECALS | 1 | $321.95 | |
| 2 | 2718-292 | PANEL,SIDE-UPR-W/O DECALS-RH ORN | 1 | $263.95 | |
| 2 | 2718-293 | PANEL,SIDE-UPR-W/O DECALS-LH ORN | 1 | $263.95 | |
| 3 | 0617-514 | FOAM,UPR SIDE PANEL-RH | 1 | $47.95 | |
| 3 | 0617-515 | FOAM,UPR SIDE PANEL-LH | 1 | $44.95 | |
| 4 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 5 | 7611-778 | DECAL,UPR PANEL-REAR ORN RH-"20" TS | 1 | $141.95 | |
| 5 | 7611-779 | DECAL,UPR PANEL-REAR ORN LH-"20" TS | 1 | $50.95 | |
| 6 | 7611-780 | DECAL,UPR PANEL-FWD ORN-RH "SMOKE" TS | 1 | $85.95 | |
| 6 | 7611-781 | DECAL,UPR PANEL-FWD ORN-LH "SMOKE" TS | 1 | $85.95 | |
| 7 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 7 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 8 | 4606-662 | VENT,UPR PANEL-RH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 8 | 4606-663 | VENT,UPR PANEL-LH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 9 | 2718-386 | PANEL,SIDE-LWR BLK-RH-W/DECALS(TEXTURED) | 1 | $346.95 | |
| 9 | 2718-387 | PANEL,SIDE-LWR BLK-LH-W/DECALS(TEXTURED) | 1 | $389.95 | |
| 10 | 2718-322 | PANEL,SIDE-LWR-W/O DEC RH-BLK-TEXTURED | 1 | $279.95 | |
| 10 | 2718-323 | PANEL,SIDE-LWR-W/O DEC LH-BLK-TEXTURED | 1 | $279.95 | |
| 11 | 0617-564 | FOAM,LWR SIDE PANEL-FRT RH | 1 | $16.49 | |
| 11 | 0617-550 | FOAM,LWR SIDE PANEL-FRT-LH (1" THICK) | 1 | $72.95 | |
| 12 | 0617-568 | FOAM,LWR SIDE PANEL-REAR RH | 1 | $93.95 | |
| 12 | 0617-567 | FOAM,LWR SIDE PANEL- REAR LH (19mm THK) | 1 | $93.95 | |
| 13 | 7611-782 | DECAL,LWR PANEL-ORN RH "SNO PRO" TS | 1 | $185.95 | |
| 13 | 7611-783 | DECAL,LWR PANEL-ORN LH "SNO PRO" TS | 1 | $185.95 | |
| 14 | 7611-784 | DECAL,LWR PANEL-FWD ORN RH "APV/ATEX" | 1 | $166.95 | |
| 14 | 7611-785 | DECAL,LWR PANEL-FWD ORN LH "APV/ATEX" | 1 | $166.95 | |
| 15 | 8611-181 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 16 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 17 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 3706-706 | PLATE,SKID-BLK RH-ROUTED | 1 | $62.95 | |
| 19 | 3706-707 | PLATE,SKID-BLK LH-ROUTED | 1 | $55.95 | |
| 20 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 21 | 4606-982 | FOIL,RH SKID PLATE-HINGE | 1 | $15.11 | |
| 22 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 23 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 24 | 1712-348 | PLATE,EXHAUST OUTLET SEAL-PTD BLK | 1 | $15.11 | |
| 25 | 2612-156 | SEAL,EXHAUST OUTLET-2 STRK | 1 | $17.87 | |
| 26 | 1712-501 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $32.95 | |
| 27 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 28 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 29 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 30 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 31 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 32 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 33 | 2612-268 | SHIELD,HEAT-RH SKID PLATE | 1 | $22.01 |
