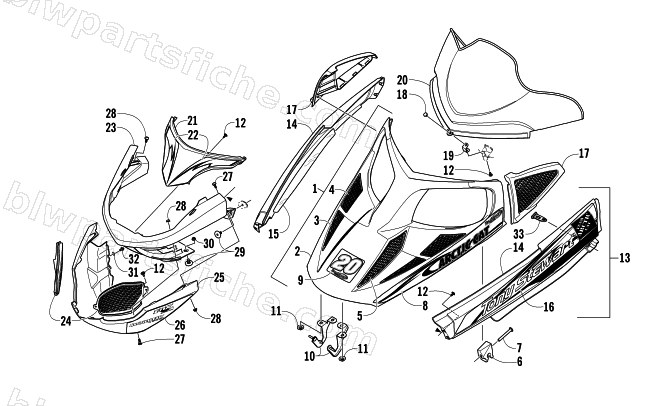

2007 Arctic Cat F8 EFI SNO PRO LIMITED EDITION — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2007 F8 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-381 | HOOD-W/DECALS-S/P ASSY | 1 | $341.95 | |
| 2 | 7999-266 | LID,HOOD-ORN-MFG ASSY | 1 | $187.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 7611-786 | DECAL,HOOD LID-ORN RH "ARCTIC CAT" TS | 1 | $102.95 | |
| 8 | 7611-787 | DECAL,HOOD LID-ORN LH "ARCTIC CAT" TS | 1 | $102.95 | |
| 9 | 7611-775 | DECAL,HOOD LID-ORN "20" TS | 1 | $82.95 | |
| 10 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 10 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 11 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 12 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 13 | 2718-382 | SPAR,FRONT-RH BLK W/DECALS | 1 | $306.95 | |
| 13 | 2718-383 | SPAR,FRONT-LH BLK W/DECALS | 1 | $306.95 | |
| 14 | 4606-884 | SPAR,FRONT-RH-MOLD BLK | 1 | $39.95 | |
| 14 | 4606-885 | SPAR,FRONT-LH-MOLD BLK | 1 | $39.95 | |
| 16 | 7611-790 | DECAL,FRT SPAR-ORN RH "TONY STEWART" | 1 | $218.95 | |
| 16 | 7611-791 | DECAL,FRT SPAR-ORN LH "TONY STEWART" | 1 | $218.95 | |
| 17 | 4606-590 | R/B 5606-926 | 1 | $54.95 | |
| 17 | 4606-591 | BEZEL,INTAKE-LH-ORN-ASSY | 1 | $54.95 | |
| 18 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 19 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 20 | 5606-960 | WINDSHIELD,LOW-TINT | 1 | $200.95 | |
| 22 | 7611-788 | DECAL,FRT BUMPER CLIP-RH TS | 1 | $112.95 | |
| 22 | 7611-789 | DECAL,FRT BUMPER CLIP-LH TS | 1 | $106.95 | |
| 23 | 4606-512 | BUMPER,FRONT CLIP-MOLD BLK | 1 | $141.95 | |
| 24 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 24 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 25 | 5606-465 | FACIA,BUMPER-LWR-MOLD ORN | 1 | $93.95 | |
| 26 | 7611-792 | DECAL,FRT BUMPER LWR-ORN RH"FOX/AC WEAR" | 1 | $62.95 | |
| 26 | 7611-793 | DECAL,FRT BUMPER LWR-ORN LH"FOX/AC WEAR" | 1 | $60.95 | |
| 27 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 30 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 31 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 32 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 33 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 |
