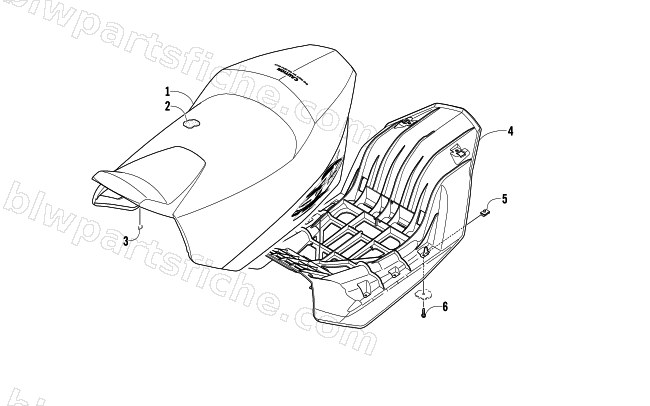

2007 Arctic Cat F6 EFI — SEAT ASSEMBLY
2007 F6 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7999-341 | SEAT,BLK/SLV(NONADJUSTABLE)-MFG ASSY | 1 | $632.95 | |
| 0 | 7999-340 | SEAT,BLK/GRN(NONADJUSTABLE)-MFG ASSY | 1 | $642.95 | |
| 0 | 7999-169 | SEAT,BLK/ORN(NONADJUSTABLE)-MFG ASSY | 1 | $720.95 | |
| 1 | 3706-543 | COVER,SEAT W/DECAL-07 NON ADJ BLK | 1 | $438.95 | |
| 1 | 3706-545 | COVER,SEAT W/DECAL-07 NON ADJ GRN | 1 | $438.95 | |
| 1 | 3706-544 | COVER,SEAT W/DECAL-07 NON ADJ ORN | 1 | $434.95 | |
| 2 | 0617-535 | FOAM,SEAT (77-82 ILD) .48@5.4 - NON ADJ | 1 | $160.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 4 | 4606-583 | SEATBASE,PLASTIC-NON AJUSTABLE | 1 | $81.95 | |
| 5 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 6 | 1623-672 | SCREW,HH W/SPRING WASHER M6X1.0X25 | 1 | $1.19 |
