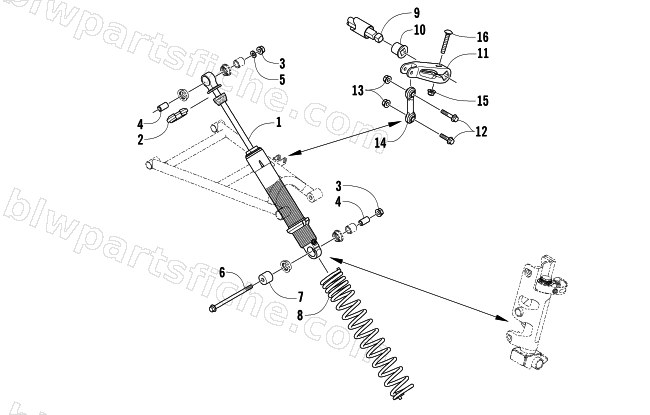

2007 Arctic Cat CROSSFIRE 800 EFI — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2007 CROSSFIRE 800 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3703-470 | SHOCK, SKI MONO TUBE 18.7" (475mm) SP | 1 | $381.95 | |
| 2 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 5 | 0623-991 | WSHR, FLAT ALUM-.390 X 1.125 X .125 | 1 | $1.95 | |
| 6 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 7 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 8 | 1703-742 | SPRING,COMPRESSION-PTD FIRE RED | 1 | $74.95 | |
| 8 | 2703-016 | SPRING,COMPRESSION-PTD PC GRN | 1 | $74.95 | |
| 8 | 2703-018 | SPRING,COMPRESSION-PTD ORN | 1 | $74.95 | |
| 9 | 2703-094 | SWAY BAR,7/16 DIA X 21.21"-PTD BLK | 1 | $112.95 | |
| 10 | 2603-648 | BEARING,SWAY BAR-HIGH TEMP | 1 | $13.73 | |
| 11 | 2703-096 | ARM,SWAYBAR 3.3"-PTD BLK | 1 | $76.95 | |
| 12 | 8020-045 | SCREW,CAP-HFH 1/4-20 X 1.500 Z&Y | 1 | $0.95 | |
| 13 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 14 | 2603-649 | LINK,SWAY BAR-2.00" | 1 | $57.95 | |
| 15 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 16 | 1623-584 | BOLT,CRG 5/16-18 X 2.0 GR5 Z&Y | 1 | $1.23 |
