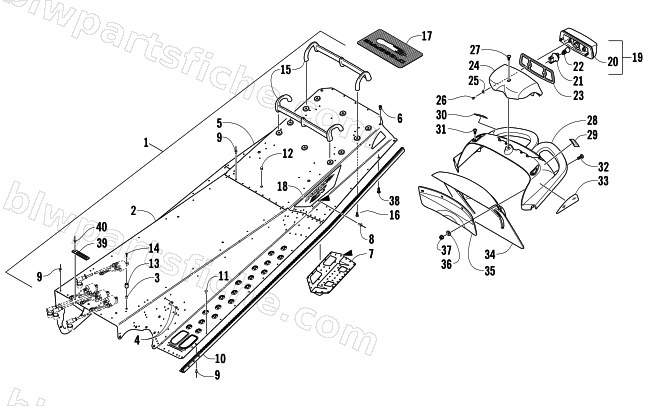

2007 Arctic Cat CROSSFIRE 800 EFI SNO PRO — TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
2007 CROSSFIRE 800 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-147 | CHASSIS/TUNNEL-S/P ASSY(07 CF S.P.) | 1 | $2,023.29 | |
| 1 | 2718-346 | TUNNEL ASSY-UNPTD | 1 | $741.95 | |
| 2 | 2718-280 | BODY,FRONT W/INSERTS | 1 | $434.95 | |
| 3 | 1623-562 | INSERT, AL SERIES ALS4-1024-130 | 1 | $2.75 | |
| 4 | 1623-657 | INSERT,AT SERIES-ATS2-1024 | 1 | $3.57 | |
| 5 | 2718-052 | BODY,REAR W/INSERTS | 1 | $610.95 | |
| 7 | 3706-152 | BRKT,SUSP MTG-PTD RH | 1 | $35.95 | |
| 7 | 3706-153 | BRKT,SUSP MTG-PTD LH | 1 | $35.95 | |
| 8 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 9 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 10 | 3606-530 | ROLL,TUNNEL-141"-R/H-FORMED | 1 | $128.95 | |
| 10 | 4606-857 | ROLL,TUNNEL-141"-L/H-FORMED | 1 | $134.95 | |
| 11 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 11 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 12 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 13 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 | |
| 14 | 1623-671 | SCREW,MACH-TSTRH 10-24X1.75 G2 W/204 | 1 | $1.23 | |
| 15 | 3606-584 | RACK,PLASTIC-INJ MOLD | 1 | $331.95 | |
| 16 | 1623-499 | SCREW,MACH-TSTRH 1/4-20X0.5 G2 W/204 | 1 | $1.09 | |
| 17 | 4606-149 | PAD,RUBBER-TUNNEL | 1 | $17.87 | |
| 18 | 7611-584 | DECAL,TUNNEL-RH (SP ORN) | 1 | $36.95 | |
| 18 | 7611-585 | DECAL,TUNNEL-LH (SP ORN) | 1 | $36.95 | |
| 19 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 20 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 21 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 22 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 23 | 4606-382 | SPACER,TAILLIGHT-.25" | 1 | $49.95 | |
| 24 | 3606-747 | HOUSING,TAILLIGHT-INJ MOLD | 1 | $162.95 | |
| 25 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 26 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 27 | 1623-513 | SCREW,MACH-TSTRH 1/4-20X1.75 RIEW/204DPT | 1 | $3.95 | |
| 28 | 3606-431 | BUMPER,REAR-BLACK-INJ MOLD | 1 | $220.95 | |
| 29 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 30 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 31 | 1623-501 | SCREW,MACH-TSTRH 1/4-20X0.5 RIE W/204 | 1 | $4.26 | |
| 32 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 33 | 8611-010 | DECAL,REFLECTOR-REAR-RH (RED) | 1 | $26.95 | |
| 33 | 8611-011 | DECAL,REFLECTOR-REAR-LH (RED) | 1 | $26.95 | |
| 34 | 4606-227 | SNOWFLAP,BLK-W/7611-113 DECAL | 1 | $137.95 | |
| 35 | 3606-776 | SUPPORT,SNOWFLAP-INJ MOLD | 1 | $45.95 | |
| 36 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 37 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 38 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 39 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 40 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 |
