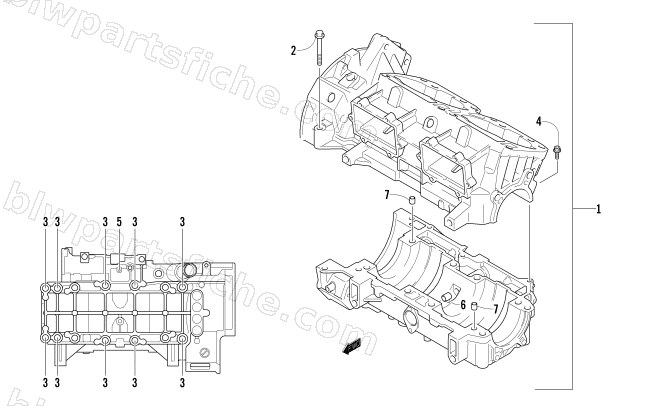

CRANKCASE ASSEMBLY
2007 CROSSFIRE 800 EFI SNO PRO
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
3007-526 |
CRANKCASE ASSY |
1 |
$1,458.95 |
|
| 2 |
3006-538 |
BOLT,CYL HEAD |
1 |
$5.65 |
|
| 3 |
3006-488 |
BOLT,10X87 |
1 |
$5.65 |
|
| 4 |
3007-445 |
BOLT |
1 |
$2.75 |
|
| 5 |
3007-527 |
BOLT |
1 |
$5.09 |
|
| 6 |
3003-647 |
BUSHING,OIL PUMP SHAFT,M10 |
1 |
$24.77 |
|
| 7 |
3005-206 |
PIN (H:10),DOWEL |
1 |
$3.30 |
|
