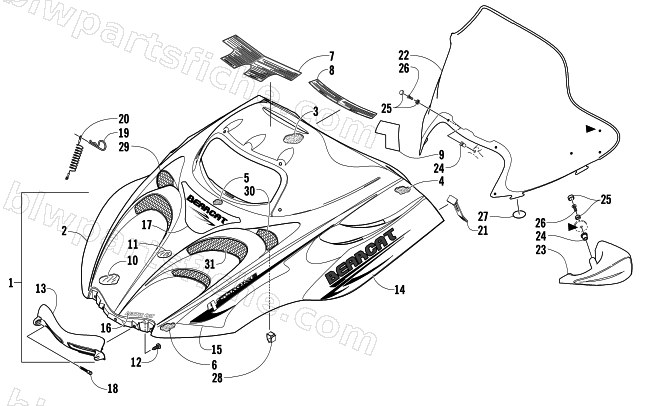

2007 Arctic Cat BEARCAT WIDE TRACK — HOOD AND WINDSHIELD ASSEMBLY
2007 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-020 | HOOD W/DECALS-07 BCWT 660 | 1 | $1,350.95 | |
| 2 | 1718-811 | HOOD, W/O DECALS-06 BCWT | 1 | $1,057.95 | |
| 3 | 0617-508 | FOAM, HOOD- MIDDLE UPR RH | 1 | $26.95 | |
| 4 | 0617-506 | FOAM, HOOD-UPR RH | 1 | $68.95 | |
| 4 | 0617-507 | FOAM, HOOD-UPR LH | 1 | $128.95 | |
| 5 | 0617-475 | FOAM,HOOD-MIDDLE | 1 | $15.11 | |
| 6 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 2606-935 | FOIL, PROTECTIVE-4 STROKE HOOD | 1 | $17.87 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 4606-004 | HINGE, HOOD-PLATINUM | 1 | $49.95 | |
| 14 | 7611-392 | DECAL, HOOD-LOWER-RH-07 BC | 1 | $84.95 | |
| 14 | 7611-393 | DECAL, HOOD-LOWER-LH-07 BC | 1 | $84.95 | |
| 15 | 7611-400 | DECAL, HOOD-UPPER-RH-07 BCWT | 1 | $70.95 | |
| 15 | 7611-401 | DECAL, HOOD-UPPER-LH-07 BCWT | 1 | $70.95 | |
| 16 | 6611-548 | DECAL, HOOD-"AC"-BCWT | 1 | $29.95 | |
| 17 | 7611-408 | DECAL, HOOD-CREST-BCWT | 1 | $33.95 | |
| 18 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 20 | 3606-746 | CABLE, HOOD-37" | 1 | $14.95 | |
| 21 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 22 | 4606-754 | WINDSHIELD,BCWT 660-BLK | 1 | $209.95 | |
| 24 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 25 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 26 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 27 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 28 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 29 | 2706-408 | SCREEN, VENT-HOOD-RH-PTD BLK | 1 | $63.95 | |
| 30 | 2706-409 | SCREEN, VENT-HOOD-LH-PTD BLK | 1 | $32.95 | |
| 31 | 2706-407 | SCREEN, VENT-HOOD-CTR-PTD BLK | 1 | $65.95 |
