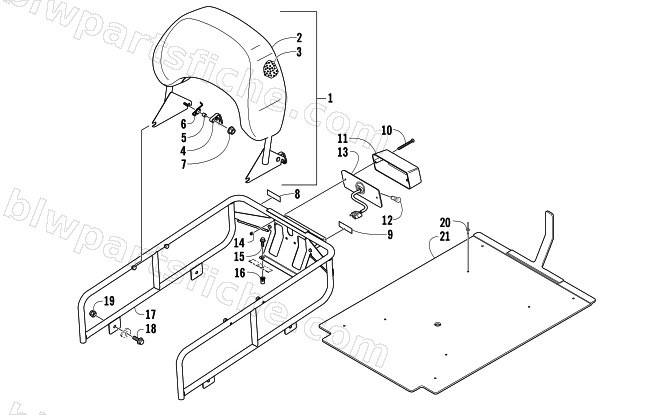

2007 Arctic Cat BEARCAT 570 LONG TRACK — RACK, BACKREST, AND TAILLIGHT ASSEMBLY
2007 BEARCAT 570 LONG TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3706-382 | BACKREST, MFG ASSY-07 BC LT 570 | 1 | $500.95 | |
| 2 | 3706-381 | COVER, BACKREST-07 BC LT 570 | 1 | $160.95 | |
| 3 | 0716-705 | FOAM,BACKREST(IDL N/A),44@1.8 | 1 | $85.95 | |
| 4 | 3606-882 | LATCH, BACKREST-05 BCLT | 1 | $18.95 | |
| 5 | 3606-228 | BUSHING, BACKREST LATCH | 1 | $12.35 | |
| 6 | 3606-880 | SPRING, TORSION-RH-05 BCLT BACKREST | 1 | $19.95 | |
| 6 | 3606-881 | SPRING, TORSION-LH-05 BCLT BACKREST | 1 | $22.01 | |
| 7 | 8049-366 | NUT,HEX FLG-SIDE LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 8 | 1611-568 | DECAL,WARNING-MAX PAYLOAD WT | 1 | $13.73 | |
| 9 | 1611-569 | DECAL,WARNING-MAX PAYLOAD WT(FRENCH) | 1 | $13.73 | |
| 10 | 1623-148 | SCREW,MACH-TSBH 10-32X2.125 GR8 Z&Y | 1 | $12.35 | |
| 11 | 0609-229 | LENS,TAILLIGHT | 1 | $32.95 | |
| 12 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 13 | 0609-230 | HOUSING,TAILLIGHT-W/SOCKET | 1 | $65.95 | |
| 14 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 15 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 16 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 17 | 2706-376 | RACK, UTILITY-PTD | 1 | $304.95 | |
| 18 | 8020-220 | SCREW,CAP-HFH 3/8-16 X 0.750 Z&Y | 1 | $1.09 | |
| 19 | 0623-426 | NUT,NY-LOCK 3/8-16-NYL CAP BLACK | 1 | $1.64 | |
| 20 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 21 | 3606-177 | COVER,TUNNEL-EXTENSION | 1 | $175.95 |
