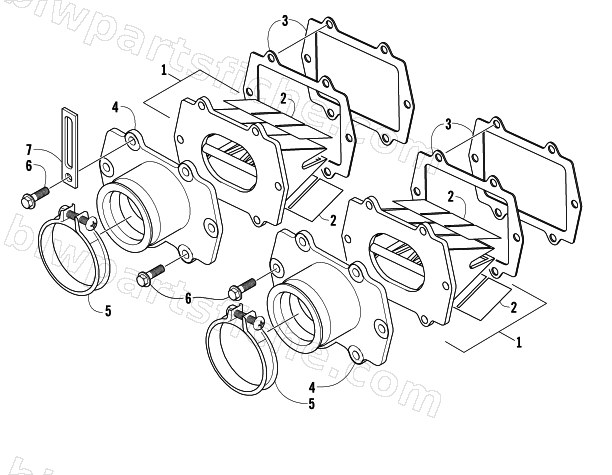

2007 Arctic Cat AC 600 MODIFIED SNO PRO — REED VALVE ASSEMBLY
2007 AC 600 MODIFIED SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2900-068 | VALVE,REEDS-ASSY-V-FORCE | 1 | $275.95 | |
| 2 | 2900-016 | PETAL,V-FORCE REEDS | 1 | $136.95 | |
| 3 | 2900-017 | GASKET,V-FORCE REEDS | 1 | $6.75 | |
| 4 | 2900-014 | MANIFOLD,INTAKE-MODIFIED-SPEEDWERX | 1 | $60.95 | |
| 5 | 3004-463 | CLAMP,M58 | 1 | $34.95 | |
| 6 | 3007-409 | BOLT | 1 | $3.16 | |
| 7 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
