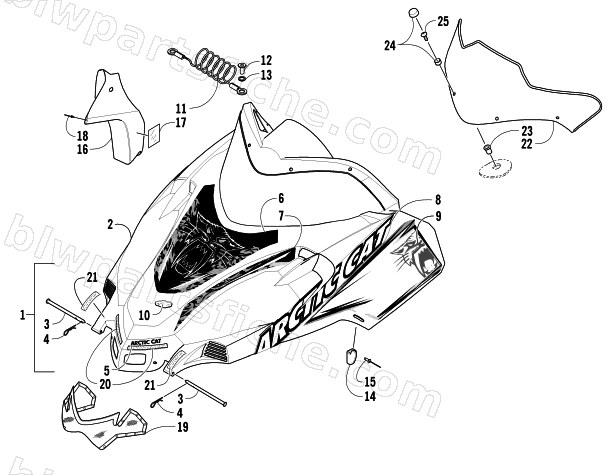

2007 Arctic Cat AC 600 MODIFIED SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2007 AC 600 MODIFIED SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-070 | HOOD-W/DECALS-ASSY | 1 | $830.95 | |
| 2 | 2706-638 | HOOD - PTD GRN | 1 | $827.95 | |
| 3 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 4 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 5 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 6 | 7611-918 | DECAL,COVER-CREST-CENTER | 1 | $48.95 | |
| 7 | 7611-916 | DECAL,COVER-CREST-RH | 1 | $21.95 | |
| 7 | 7611-917 | DECAL,COVER-CREST-LH | 1 | $21.95 | |
| 8 | 7611-912 | DECAL,HOOD-CENTER RH-"ARCTIC CAT" | 1 | $70.95 | |
| 8 | 7611-913 | DECAL,HOOD-CENTER LH-"ARCTIC CAT" | 1 | $70.95 | |
| 9 | 7611-906 | DECAL,HOOD-LWR RH | 1 | $86.95 | |
| 9 | 7611-907 | DECAL,HOOD-LWR LH | 1 | $86.95 | |
| 10 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 11 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 12 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 13 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 14 | 2606-096 | HOLDDOWN,HOOD STRAP-SIDE RH | 1 | $30.95 | |
| 14 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 15 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 16 | 3606-030 | DUCT, BRAKE-PLASTIC | 1 | $94.95 | |
| 17 | 2606-556 | FOIL, PROTECTIVE,3" X 6" | 1 | $2.61 | |
| 18 | 0623-853 | RIVET, BLIND-.162 DIA X .040/.275 GRIP | 1 | $1.09 | |
| 19 | 3706-081 | SCREEN,HOOD-ASSY (18snaps) | 1 | $144.95 | |
| 20 | 2706-458 | VELCRO,HOOK-5/8"X10FT | 1 | $58.95 | |
| 21 | 6990-266 | VELCRO,HOOK- ROLL-10 FT | 1 | $13.95 | |
| 22 | 3606-842 | WINDSHIELD,LOW-RACE | 1 | $94.95 | |
| 23 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 |
