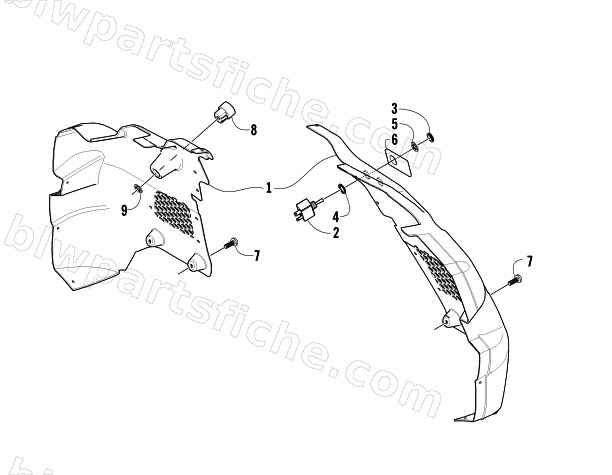

2007 Arctic Cat AC 600 MODIFIED SNO PRO — CONSOLE AND SWITCH ASSEMBLY
2007 AC 600 MODIFIED SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3706-376 | CONSOLE,RH-ROUTED | 1 | $63.95 | |
| 1 | 3706-377 | CONSOLE,LH-ROUTED | 1 | $56.95 | |
| 2 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 3 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 4 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 5 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 6 | 7611-112 | DECAL,TOGGLE SWITCH-HAND WARMER | 1 | $21.95 | |
| 7 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 8 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 9 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 |
