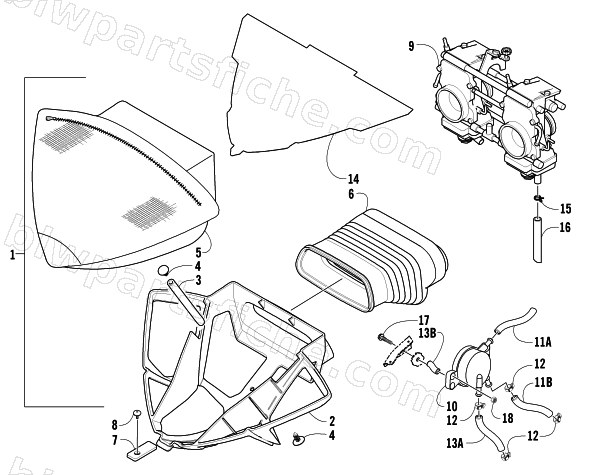

2007 Arctic Cat AC 600 MODIFIED SNO PRO — AIR SILENCER ASSEMBLY
2007 AC 600 MODIFIED SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-672 | SILENCER,AIR-ASSY | 1 | $352.95 | |
| 2 | 0770-673 | BOTTOM,AIR SILENCER-MACH | 1 | $206.95 | |
| 3 | 1670-645 | TUBE,SUPPORT-AIR SILENCER | 1 | $26.95 | |
| 4 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 5 | 1670-623 | COVER,INTAKE SCREEN | 1 | $155.95 | |
| 6 | 0770-738 | BOOT,AIR SILENCER-MACH | 1 | $105.95 | |
| 7 | 3606-146 | HOLDDOWN,AIR SILENCER | 1 | $12.35 | |
| 8 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 9 | 1670-915 | CARB,TM 40-B367 | 1 | $1,311.95 | |
| 10 | 1670-665 | PUMP,FUEL-PLASTIC | 1 | $193.95 | |
| 11 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 11 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 14 | 4606-045 | COVER,AIR SILENCER-PLASTIC | 1 | $54.95 | |
| 15 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 16 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 17 | 0623-388 | SCREW,CAP HWH-#10-32 X 2.00 Z&Y | 1 | $1.95 | |
| 18 | 8041-276 | NUT,HEX THIN LOCK-NYL 10-32 Z&Y | 1 | $0.26 |
