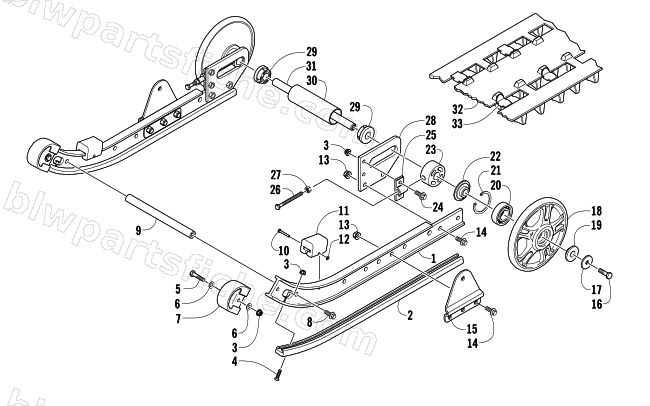

2007 Arctic Cat AC 120 — SLIDE RAIL, IDLER WHEELS, AND TRACK ASSEMBLY
2007 AC 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-705 | RAIL, SLIDE-FORMED | 1 | $73.95 | |
| 2 | 1604-568 | WEARSTRIP,SLIDE RAIL-BLK-Z 120 | 1 | $23.39 | |
| 3 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 4 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 5 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 0604-231 | NOSE PIECE,SLIDE RAIL-BLACK | 1 | $15.11 | |
| 8 | 1623-566 | SCREW,CAP-HFH 5/16-18 X0.875 G5 W/2353 | 1 | $1.64 | |
| 9 | 1604-566 | AXLE,CROSSBRACE | 1 | $20.63 | |
| 10 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 11 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 12 | 0423-090 | NUT,PRESS ON (PUSHNUT)-1/8 STUD | 1 | $0.40 | |
| 13 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 14 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 | |
| 15 | 0704-896 | BRKT,SUPPORT-FRT ARM-PTD BLK | 1 | $19.25 | |
| 16 | 1623-427 | SCREW,CAP-HFH 3/8-16X1.000 W/2353 | 1 | $1.78 | |
| 17 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 18 | 2604-122 | WHEEL,IDLER-5.63 SPOKED-YELLOW | 1 | $51.95 | |
| 19 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 20 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 21 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 22 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 23 | 0604-165 | BUSHING,REAR WHEEL-ADJ. | 1 | $10.97 | |
| 24 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 25 | 0604-206 | TRACK ADJUSTOR-MACHINED | 1 | $13.73 | |
| 26 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 27 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 28 | 1604-661 | HOUSING, REAR,AXLE | 1 | $32.95 | |
| 29 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 30 | 1604-563 | SPACER,REAR AXLE | 1 | $20.63 | |
| 31 | 1604-562 | AXLE,IDLER-REAR | 1 | $37.95 | |
| 32 | 2602-476 | TRACK, 2.125 X 10.00 X .688 | 1 | $509.95 | |
| 33 | 1602-079 | CLIP, TRACK | 1 | $10.97 |
